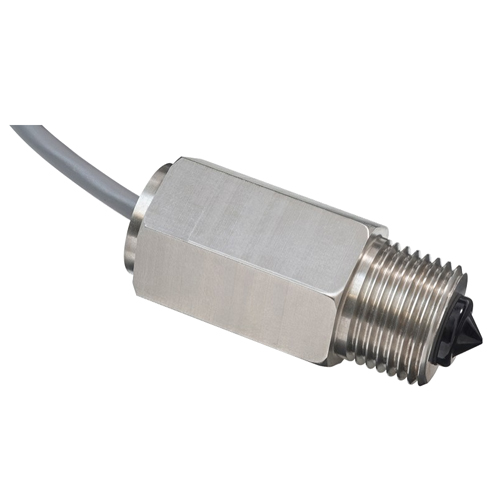

High Performance Liquid Level Sensors - LLHPA650L1

? Supply voltage: 10V DC to 45V DC (±5%)?
? Supply current: 35mA max.
? Output sink and source current?: 800mA max.
? Operating temperatures?: -25°C to +80°C?
? Storage temperatures?: -30°C to +85°C?
? Output Type / Logic?: ?N-Type Low in Air?
? Housing Type?: Stainless Steel 1/2" BSP?

Model Number: LLHPA650L1
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

LLHPA650L1 High Performance Liquid Level Switches General Description
The LLHP range of liquid level switches offer larger mounting threads and robust stainless steel housings that can survive in aggressive environments.

The microcontroller based sensor is solid state, incorporating an infra-red LED and phototransistor which are optically coupled by the tip when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes making the output change state. The sensor can detect the presence or absence of almost any liquid type; oil or water based. It is insensitive to ambient light and is not affected by foam when in air or by small bubbles when in liquid.

LLHPA650L1 High Performance Liquid Level Switches Features
? Liquid level switches that can detect almost any liquid type; oil or water based
? Large load output; high switching currents
? Choice of threads and terminal connections

LLHPA650L1 High Performance Liquid Level Switches Benefits

? Robust stainless steel housing
? Suitable for use within aggressive environments
? Larger mounting threads; standard or custom

LLHPA650L1 High Performance Liquid Level Switches Technical Specifications

Supply voltage (Vs)	10V DC to 45V DC (±5%)
Supply current (ls)	35mA max. (Vs = 45V DC)
Output sink and source current (lout)	800mA max. (45V DC)
Operating temperatures	Standard: -25°C to +80°C
Storage temperatures	Standard: -30°C to +85°C
Housing material	Stainless Steel with Polysulfone tip
Sensor termination	Various
Output Type / Logic	N-Type Low in Air
Housing Type	Stainless Steel 1/2" BSP
Termination Cable	1.0m (IP67)
Internal Seal Washer	Nitrile rubber

LLHPA650L1 High Performance Liquid Level Switches Output Values

Output Voltage (Vout):	lout = 800mA
Vs = 10 ~ 45V DC
Output Low	Vout = 0V + 0.7V max

LLHP Series High Performance Liquid Level Switches Order Information
Generate your specific part number using the convention shown below. Use only those letters and numbers that correspond to the sensor and output options you require — omit those you do not.
