Flange Mount Zirconia Oxygen Sensor - O2S-FR-T4-4P

? Oxygen pressure range 2 mbar - 3bar
? Zirconium dioxide (ZrO2 ) sensing elements
? Non-consumption technology
? Integral heating element
? No need for temperature stabilisation
? No reference gas required
? High accuracy
? Linear output signal
? Operates with external interface boards

Model Number: O2S-FR-T4-4P
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Flange Mount Zirconia Oxygen Sensor Description
The Flange Mount Zirconium Dioxide Oxygen Sensor is designed for easy sealing into a manifold or sampling chamber. Favoured by SST’s aerospace customers and in applications that require high temperature and pressure operation.

SST’s range of zirconium dioxide oxygen sensors use a unique closed loop measurement system. While the sensor continuously measures the oxygen level, a heartbeat signal is also generated providing an immediate warning of any failures.

Their long operating life is due to the non-depleting sensor cell technology. No reference gas is required and easy single point calibration can be performed in any known gas including fresh air.

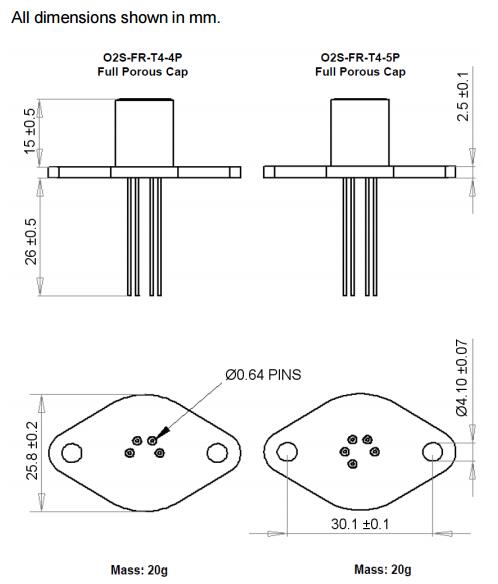

The Flange Mount oxygen sensor offers 4 or 5 pin termination, a temperature range of -100 to 400?C and response time of less than 4 seconds. The oxygen sensor offers a linear output signal, a lifetime of up to 10 years (depending on the application) and covers an oxygen range 0.1 to 100% O?.
The Flange Mount Zirconium Dioxide Oxygen Sensor is designed for easy sealing into a manifold or sampling chamber. Favoured by SST’s aerospace customers and in applications that require high temperature and pressure operation.

O2S-FR-T4-4P Zirconia Oxygen Sensor FEATURES

? Zirconium dioxide (ZrO2) sensing elements
? Long life, non-depleting technology
? Integral heating element
? High accuracy
? Requires an external interface board to operate

O2S-FR-T4-4P Zirconia Oxygen Sensor BENEFITS
? No reference gas required
? No need for temperature stabilisation
? Flange mounting

O2S-FR-T4-4P Zirconia Oxygen Sensor TECHNICAL SPECIFICATIONS

Heater voltage Operating Standby	4.35VDC ± 0.1VDC (1.85A) 2VDC (0.85A)
Pump impedance at 700°C	< 6kΩ
Permissible gas temperature	-100°C to +400°C
Gas flow rate	0 - 10 m/s
Repetitive permissible acceleration	5g
Incidental permissible acceleration	30g

O2S-FR-T4-4P Zirconia Oxygen Sensor OUTPUT VALUES

Oxygen pressure range	2mbar - 3bar max
Accuracy	5mbar max
Internal operational temp	700°C
Response time (10 - 90% step)	< 4s
Warm up time (prior to sensor operation)	60s
Warm up time (from standby)	20s
Output stabilisation time	~ 180s
