Oxygen Analyser - OXY-Flex-x Series

Zirconia oxygen sensor probe
Integrated electronics provide 0-10V, 4-20mA, and RS232
Operating temperatures up to 400?C
User-selectable measuring ranges
Various probe lengths available

Model Number: OXY-Flex-x Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

OXY-Flex-x Series DESCRIPTION
The OXY-FLEX-X Series Standard Temperature Oxygen Analyser is designed to determine the oxygen concentration in air or inert gas mixtures with temperatures of -100 to +250°C max.

The OXY-FLEX-X-H Series High Temperature Oxygen Analyser is designed to determine the oxygen concentration in air or inert gas mixtures with temperatures of -100 to +400°C max.

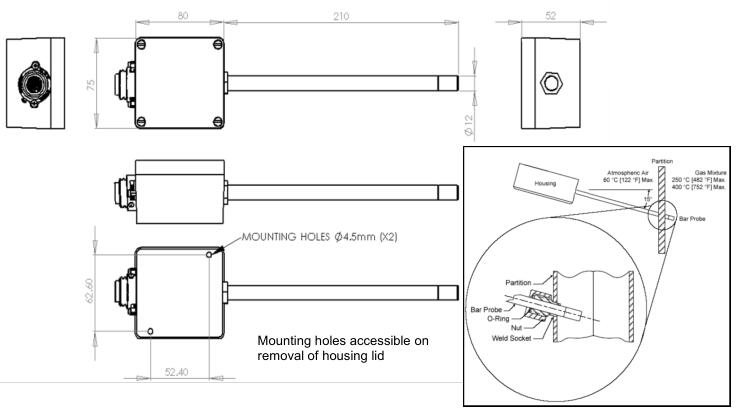

These products are particularly suitable for measuring oxygen in areas that are not easily accessible, or in closed systems, such as ventilation pipes, flues and containers.

The OXY-FLEX Series can be user configured to output measuring ranges of 0-25% O2 and 0-100% O2 . The entire measurement range is linear in both cases. Factory default is 0-25% O2. When configured for 0-100% O2 the user can also customise the analogue output ranges to suit their application.

The outputs can be configured to either 4-20mA and 0-10V DC or RS232 interface. Prior to shipping all OXY-FLEX’s are preconfigured with a measuring range of 0.1% to 25% Vol. O 2 with linear 4-20mA and 0-10V DC outputs.

All settings can be changed by the customer should their measurement or interface requirements change by simply altering the position of jumper links on the PCB.

OXY- Flex Oxygen Analyser FEATURES

* High accuracy linear output
* Configurable outputs: 4-20mA and 0-10 V DC or RS232 comms interface
* Selectable output measurement ranges: Standard ranges of 0-25% O2 and 0-100% O2 or fully adjustable via RS232 when configured in 0-100% O2 mode
* Externally triggered automatic or manual calibration
* Can be calibrated in normal air (20.7% O2 ) or in any other known O2 concentration
* Cycling 3.3 V DC logic output allows direct monitoring of the O2 sensor pump cycle for diagnostic purposes
* Selectable output filtering allows adaptive, fast and dynamic or slow and stable output

OXY- Flex Oxygen Analyser SPECIFICATIONS

Supply voltage	24V DC ± 10%
Current consumption	500mA max @ 24VDC
4-20mA Load	100 to 600?
Temperature limits (electronics enclosure)
Storage	-10 to 85'C
Operating	-10 to 85'C
Temperature limits (permissible gas temperature at sensor tip)
Operating (Standard Temp)	-100 to 250'C
Operating (High Temp)	-100 to 400'C
Gas flow rate	0 to 10 m/s
Weight	<450g
Incidental permissible acceleration	30g
Repetitive permissible acceleration	5g
Sealing Rating	IP65

OXY- Flex Oxygen Analyser APPLICATIONS
* Combustion control including oil, gas and biomass boiler applications
* Composting
* Laboratory & building air quality monitoring including confined space personnel safety
* Industrial process control i.e. gas mixing for welding and steel making
* Oxygen generation systems
* Medical
* Scientific including respiratory studies of a community or an organism, plants and animals
* Food and beverage packaging
* Applications where low oxygen is key including fermentation, rust and corrosion prevention, inerting and purging

OXY- Flex Oxygen Analyser PERFORMANCE CHARACTERISTICS

Characteristics	Min.	Typ.	Max.	Unit
Output inactive start up delay (heater warm up)		60		s
Initial warm up time (till stable output)	5	10		min
Measuring ranges 25% Configuration 100% Configuration	0.1 0.1		25 100	%O2
Accuracy After Calibration			1	%O2
Repeatability After Calibration			0.5	%O2
0-10 V DC Output Resolution			0.01	V
4-20mA Output Resolution			0.01	mA
RS232 Output Resolution			0.01	%O2
Reaction time (adaptive output filtering in normal air)		1		s
