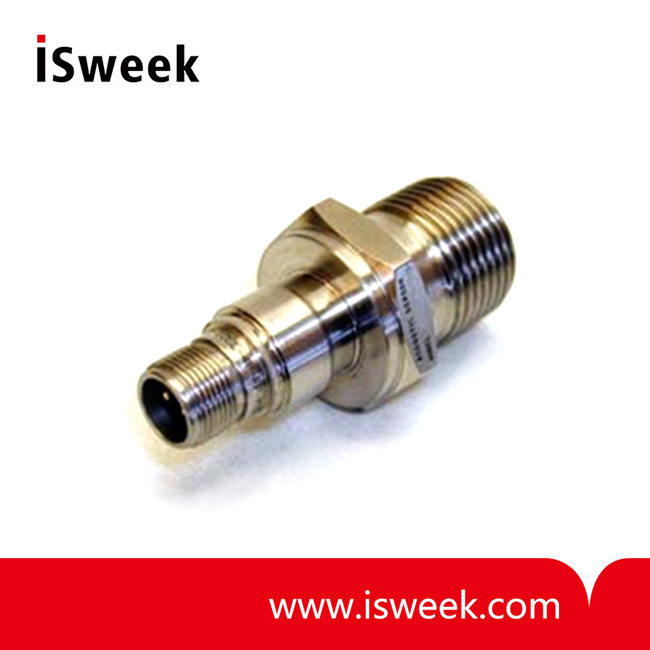

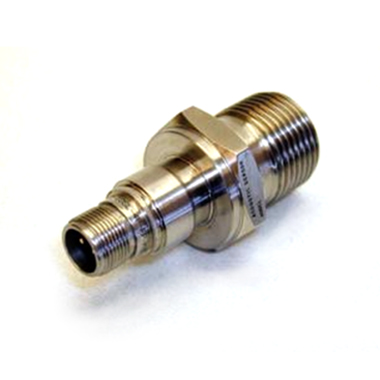

Dynamic Pressure Sensor - 567M7

? High Sensitivity (1100 pC/psi )
? High Temperature To +500 Deg F
? Electrically Isolated
? Charge Sensitivity?: 1100 +/-100 pC/psi?
? Frequency Response?: 5.2 Hz to 5,000 Hz?
? Dynamic Range?: 0.28 x 10 -4 to 10 psi (191 dB SPL Max.)?

Model Number: 567M7
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

567M7 Dynamic Pressure Sensor Description

The Model 567M7 High Intensity Acoustic Sensor (Microphone) is designed for the measurement of gas-borne sound in industrial applications. The sensor was designed for use in corrosive environments that are compatible with the type 316 stainless steel diaphragm. Model 567M7 incorporates a 2-pin MIL-C-5015 connector interface. When combined with its all-welded construction, the sensor provides a true hermetic seal.

Electrically, this device comprises sensing elements of piezoceramic material in a balanced and floating configuration to provide enhanced rejection of electrical noise associated with many industrial environments. Optimum performance is achieved when used with a true differential input amplifier.

567M7 Dynamic Pressure Sensor Features
? High Sensitivity (1100 pC/psi )
? High Temperature To +500 Deg F
? Electrically Isolated

567M7 Dynamic Pressure Sensor Specifications

Transfer / Electrical
Charge Sensitivity	1100 +/-100 pC/psi
Frequency Response	5.2 Hz to 5,000 Hz
Dynamic Range	0.28 x 10^-4 to 10 psi (191 dB SPL Max.)
Avg Temp Coeff of Sensitivity	0.08% / Deg F Nominal
Transducer Capacitance	10,000 pF +/-10%
Insulation Resistance	100 Megohms Min., 50 VDC Test
Isolation Resistance	100 Megohms Min., 50 VDC Test
Dielectric Strength	550 Vrms, 60 Hz, Element to Housing
Environmental
Vibration Limit	100 g Max. (Sine)
Shock Limit	1,000 g Max., 0.25 mSec
Temperature Range	-10 to +500 Deg F (-23 to +260 Deg C)
Humidity ¹	0 To 100% R.H.
Static Pressure	550 psi Max. (Diaphragm)
Electromagnetic Sensitivity	0.005 g (Equiv / 100 Gauss)
Physical
Configuration	Balanced Floating Compression
Size	1.375 In. Hex. x 2.87 In. H (35.0 mm Hex. x 53.34 mm H)
Weight	7.0 Oz (200 Gm)
Material Body & Diaphragm	Type 316 Stainless Steel
Electrical Interface	2-Pin MIL-C-5015 Style Connector
Mounting	1.125 – 12 UNF-2A Straight Thread
