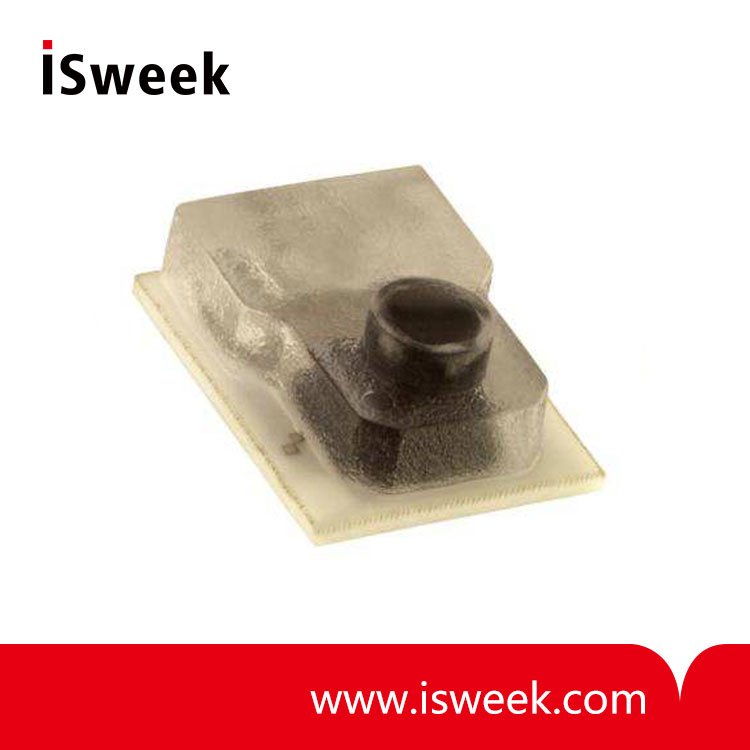

Disposable Medical Pressure Sensor - MEAS 1620

? Operating Pressure Range: -50~ 300mmHg
? Sensit?ivity: 4.95~5.05 uV/V/mmHg
? Calibrat?ion: 97.5~102.5 mmHg
? Supply Vo?ltage: 2 - 10 Vdc or Vac rms
? Warm?-Up Time: 5 Seconds
? Frequency Resp?onse: 1200Hz
? Operating Tem?perature: 10°C to 40°C
? Humidity (External) : 10-90% (non-condensing)?

Model Number: MEAS 1620
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

1620 Disposable Medical Pressure Sensor Specifications
? Disposable Blood Pressure Sensor
? AAMI Specifications
? Low Cost Disposable
? Dielectric Gel Barrier
? Fully Tested & Calibrated

The 1620 is a fully piezo resistive silicon pressure sensor for use in invasive blood pressure monitoring. The sensor is designed to be used with automated assembly equipment and can be dropped directly into a customer's disposable blood pressure housing. The sensor is designed to meet the requirements as described in the Association for the Advancement of Medical Instrumentation (AAMI) specification for Blood Pressure Transducers.

The pressure sensor consists of a pressure sensing element mounted on a ceramic substrate. Thick film resistors on the ceramic substrate are laser trimmed for compensation and calibration. A plastic cap is attached to the ceramic substrate to provide an easy method of attachment to the customer’s assembly and protection for the sensing element. A dielectric gel is placed over the sensor to provide electrical and fluid isolation.

The products are shipped on a tape and reel. Performance characteristics and packaging can be easily tailored on a special order basis to meet the requirements of specific customers.

1620 Disposable Medical Pressure Sensor Features
? Low Cost, Medical Applications
? Small Size and Reliable Performance
? Gel Isolation for Liquids
? Operates from 10°C to 40°C
? Compatible for Automated Assembly
? 1% Accuracy for Replacements
? 5.0 uV/V/mmHg Sensitivity
? Customization for OEM Applications

1620 Disposable Medical Pressure Sensor Applications
? Surgical Procedures
? Intensive Care Units
? Infusion Pumps
? Kidney Dialysis Machines
? Vacuum Assisted Birth
? Intrauterine Monitoring

1620 Disposable Medical Pressure Sensor Performance Specifications
Supply Voltage: 6.0 Vdc
Ambient Temperature: 23°C (unless otherwise specified)

Parameters	Min	Typ	Max	Units
Operating Pressure Range	-50		300	mmHg
Over Pressure	125			psi
Zero Pressure Offset	-20		20	mmHg
Sensitivity	4.95	5.00	5.05	uV/V/mmHg
Calibration	97.5	100	102.5	mmHg
Linearity and Hysteresis (-30 to 100 mmHg)	-1		1	mmHg
Linearity and Hysteresis (100 to 200 mmHg)	-1		1	% Output
Linearity and Hysteresis (200 to 300 mmHg)	-1.5		1.5	% Output
Input Impedance
1620-A	1200		3200	?
1620-E	1200		3200	?
1620-F	325		375	?
Output Impedance	285		315	?
Output Symmetry	0.95		1.05	Ratio
Supply Voltage	2	6	10	Vdc or Vac rms
Risk Current (@ 120 Vac rms, 60Hz)			2	uA
Warm-Up Time		5		Seconds
Frequency Response		1200		Hz
Offset Drift			2	mmHg
Thermal Span Shift	-0.1		0.1	%/°C
Thermal Offset Shift	-0.3		0.3	mmHg/°C
Phase Shift (@ 5KHz)			5	Degrees
Light Sensitivity (3000 Foot Candle)		1		mmHg
Defibrillator withstand (400 joules)	5			Discharges
Sterilization (ETO)	3			Cycles
Operating Temperature	10		40	°C
Storage Temperature	-25		+75	°C
Humidity (External)	10-90% (non-condensing)
Operating Product Life	168 Hours
Shelf Life	5 Years
Dielectric Breakdown	10000Vdc
Media Interface	Dielectric Gel
Volume Displacement	4.5 x 10^-4mm³
Weight	0.5 grams

1620 Disposable Medical Pressure Sensor Ordering Information

1620	-	A	-	N	T
Model	-	Pad Type	-	Pressure Port Type	Shipping
1620	-	A = Pad Type "A" E = Pad Type "E" F = Pad Type "F"	-	N = Narrow Hole W = Wide Hole	T = Tape and Reel
