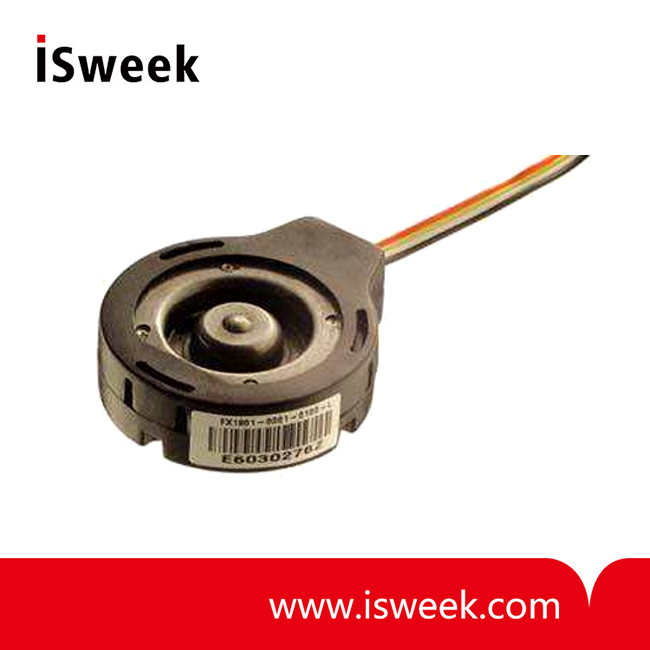

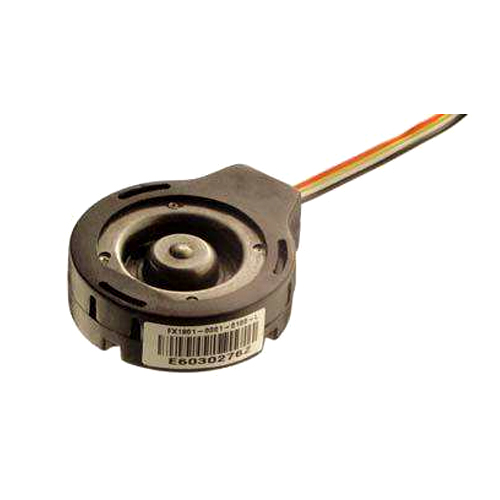

Compression Load Cell - FX1901

? High Reliability Design for OEM, Appliance and Medical Applications
? 10 - 200 lbf Ranges
? Compact Coin Cell Package
? Anti-Rotation Mounting Features
? CE Compliance

Model Number: FX1901
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

FX1901 Compression Load Cell Specifications
? High Reliability Design for OEM, Appliance and Medical Applications
? 10 - 200 lbf Ranges
? Compact Coin Cell Package
? Anti-Rotation Mounting Features
? CE Compliance

The FX1901 units are intended for OEM use in laboratory, hospital or consumer product applications, establishing a breakthrough price/performance value for compression load cells. The FX1901 is a 1% load cell device with full scale ranges of 10, 25, 50 or 100 and 200lbf compression. This new, low-cost technology enables force sensing in a whole new class of "smart" consumer and medical products.

MEAS' proprietary Microfused? technology, derived from demanding aerospace applications, employs micro-machined piezoresistive strain gages fused with high temperature glass to a high performance stainless steel force measuring flexure. Microfused? technology eliminates age-sensitive organic epoxies used in traditional load cell designs, providing excellent long term span and zero stability. Operating at very low strains, Microfused? technology provides an essentially unlimited cycle life expectancy, superior resolution, high over-range capabilities and a ratiometric span of 20mV/V. The combination of stamped flexures and micro miniaturized MEMs strain gages permits low costs to be achieved in high volume OEM applications ranging from disposable medical devices to durable appliances and exercise equipment.

FX1901 Compression Load Cell Features
? Smal
? Low Noise
? Robust: High Over-Range
? High Reliability
? mV Output: 20mV/V Nominal
? Low Deflection
? Fast
? Essentially Unlimited Cycle Life

FX1901 Compression Load Cell Applications
? Assembly Forces
? Physical Therapy Devices
? Patient Weight
? Hand Tool Forces
? Chiropractic and Exercise Equipment
? Consumables Monitoring: Copy Equipment and Vending systems
? Appliance Payload Monitoring: Washers, Dryers, Water Weight, Extraction Efficiency
? Appliance Unbalance Monitoring

FX1901 Compression Load Cell Performance Specifications
Supply Voltage: 5.0V, Ambient Temperature: 25°C (unless otherwise specified)

PARAMETERS	MIN	TYP	MAX	UNITS	NOTES
Recommended Excitation		5		V
Full Scale Output Span	16	20	24	mV/V
Full Scale Output Span (200lbf)	34.2	36	37.8
Zero Offset	-15		15	mV/V
Non-Linearity	-1		1	%FSO
Hysteresis	-0.8		0.8	%Span
Thermal Zero Shift	-0.5		0.05	%FSO / °C
Thermal Sensitivity Shift	-0.5		0.05	%FSO / °C
Insulation Resistance	50			MΩ	@500Vdc
Maximum Overload		250		%FSO
Maximum Overload (200lbf)		150		%FSO
Operating Temperature	0		50	°C
Storage Temperature	-40		85	°C
Creeping			0.5	%FSO	F.S. Span in 3min
Zero Drift			0.5	%FSO	Load F.S. 3min
Zero Return	-0.8		0.8	%FSO
Span Repeat	-0.8		0.8	%FSO
Humidity	0	5	90	%R.H.
Deflection		0.05		mm	At Rated Load
Span Compensation Resistor (10,25,50 100lbf)		464		Ω
Input Resistance	2.4	3	3.6	KΩ
Output Resistance	1.78	2.2	2.64	KΩ
