Combustion Gas Analyzer - IMR1000

? O2 Measurement: 0 ~ 21%
? CO Measurement: 0 ~ 1000 ppm/0 ~ 4000 ppm
? CO2 Measurement: 0 ~ 30%
? Battery: > 8 hrs
? Operating Temperature: 32-104°F / 0-40°C
? Operating Humidity: 10-90% rel. humidity, non-condensing
? Power Supply: 4 x AA
? Weight: 2.2lbs / 1kg
? Dimensions: 7.9" x 1.8" x 3.5"

Model Number: IMR1000
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IMR1000 Combustion Gas Analyzer

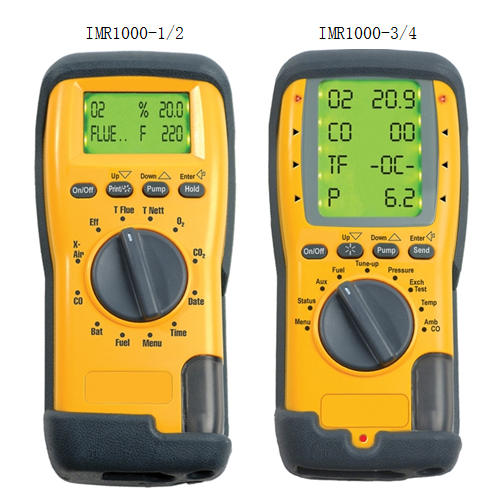

The IMR1000 is a hand held pocket size stack gas analyzer for combustion tests on boilers, burners, etc. The IMR1000-1/-2 have up to two sensors with a 2-line LCD while the IMR1000-3/-4 have a 4-line LCD and come with up to 3 sensors.

? Up to 3 sensors
? Small and rugged
? Easy to operate
? Light weight
? Memory
? Infrared Interface for printer
? Protective boot with integral magnet
? Large backlit display
? Reliable Technology
? Easy to service
? Displayed parameter can be chosen

IMR1000 Combustion Gas Analyzer Measured parameters:
? Oxygen O2
? Carbon Monoxide CO
? Carbon Monoxide CO (ambient)
? Nitric Oxide NO
? Flue-Gas Temperature

IMR1000 Combustion Gas Analyzer Calculated values:
? Combustion Efficiency
? Excess Air
? Carbon Dioxide
? CO corrected to 0% O2

IMR1000 Combustion Gas Analyzer Standard

Enclosure	Rugged plastic case with protective boot and magnet
Fuels	Natural Gas, Propane, Butane, LPG, Light Oil
Measuring units	ppm, mg/m3
Service program	Check of all values
Zero point calibration	Max. 60 seconds
Battery	> 8 hrs
Languages	English, German, French, etc.
Condensation trap	Integrated filter
Operating Conditions	32-104°F / 0-40°C; 10-90% rel. humidity, non-condensing
Gas sampling probe	Thermocouple Type K; ? 0.25"/ 6mm; Length 9"/220mm; Hose 9'/3m
Power Supply	4 x AA
Weight	2.2lbs / 1kg
Dimensions	7.9" x 1.8" x 3.5" / 200 x 45 x 90mm

IMR1000 Combustion Gas Analyzer Optional

AC adapter with rechargeable batteries

Infrared printer

Soft carrying case

Hard carrying case

1000-1	O2, condensation trap, gas sampling probe, batteries, manual
1000-2	O2, CO, condensation trap, gas sampling probe, batteries, manual
1000-3	O2, CO, draft, condensation trap, gas sampling probe, batteries, manual
1000-4	O2, CO, NO, draft, condensation trap, gas sampling probe, batteries, manual
