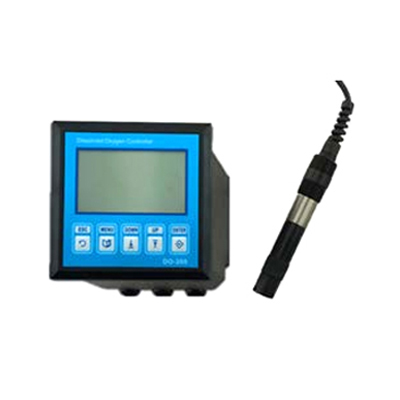

Cabinet Mounted Dissolved Oxygen Analyzer - DO-200
? Measuring range?: 0 ~ 19.99mg/L?
? Resolution?: 0.01mg/L?
? Accuracy: ±1.5%F.S.?
? Temperature: 0 ~ 45 ℃?
? Pressure: <0.1MPa?
? Power supply: 220VAC ±10%?
? Digital temperature compensation
? 4 ~ 20mA current output
- Model Number: DO-200
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
DO-200 Cabinet Mounted Dissolved Oxygen Analyzer
This product is the affordable industrial line dissolved oxygen measurement and control instruments, digital temperature compensation, 4 ~ 20mA current output, suitable for chemical, oil refining, paper, sugar, metallurgy, power generation, aquaculture and general industrial water line monitoring and control.
DO-200 Dissolved Oxygen Analyzer Technical Parameters
|
Model |
DO-200 |
|
Measuring
range |
0 ~ 19.99mg/L |
|
Resolution |
0.01mg/L |
|
Accuracy |
±1.5%F.S. |
|
Temperature |
0 ~ 45 ℃ |
|
Pressure |
<0.1MPa |
|
Power supply |
220VAC ±10% |
|
Output signal |
4 ~ 20mA output, two-wire (isolated signal)
two relay outputs |
|
Installation |
3/4" NPT thread |
