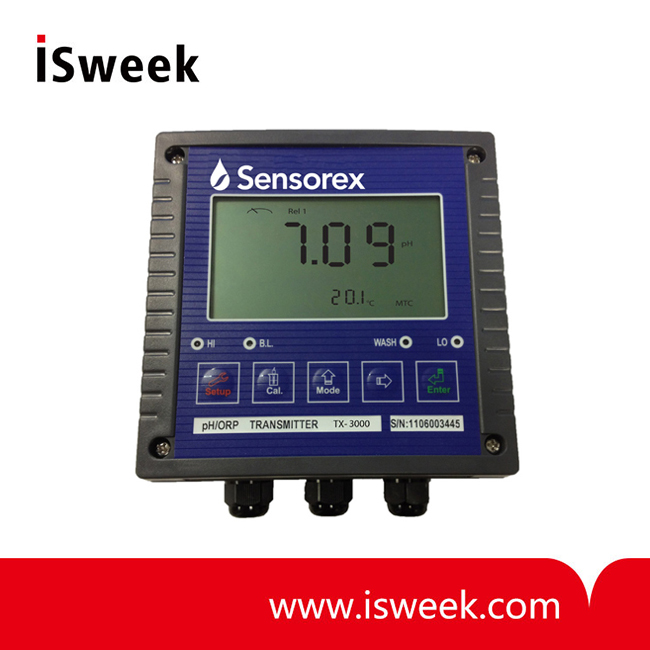

pH/mV Transmitter - TX3000

? ?Measuring Range(pH): -2.00 to 16.00 pH
? ?Measuring Range (ORP/mV): -1999mV to 1999mV
? ?Temperature Range: -30°C to 130°C
? ?Voltage Output: DC +/- 12V
? ?Ambient Temperature: 0°C to 50°C
? ?Power Requirement: 100-240V AC +/- 10%, 50/60 Hz
? ?Certification: CE

Model Number: TX3000
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TX3000 pH/mV Transmitter Features
? 2 each Voltage isolated (500 V) 4-20mA Outputs (pH or ORP and Temperature)
? 2 adjustable Hi/Lo relays and contacts
? Large segmented display indicates pH or mV and Temperature simultaneously
? NEMA 4X, IP65 enclosure
? Programmable wash feature

TX3000 pH/mV Transmitter Description
The TX3000 pH/mV is a full-featured pH or ORP controller. Simply power up your TX3000 with 110-240V AC power and you get a controller with a wide range of useful features: 2 relays, 1 wash control, 2 each 4-20mA outputs (pH & Temp or ORP & Temp).

Calibration is easy using any 2 Tech or NIST buffers and is can be password protected with a programmable security code.

Mounting choices include: wall, panel or pipe with all fittings included.

The large multi-segmented LCD includes a backlight so it can be easily viewed in all areas.

TX3000 pH/mV Transmitter Specifications

Measuring Range (pH)	-2.00 to 16.00 pH, 0.01 pH resolution
Measuring Range (ORP/mV)	-1999mV to 1999mV, 1mV resolution, +/- 1mV accuracy
Temperature Range	-30°C to 130°C , 0.1°C resolution, 0.2°C accuracy
Calibration Mode	AnyTech & NIST buffers up to 2 points
Analog Output 1	0/4 -20mA , corresponding to pH or ORP output. Max load 500 Ω.
Analog Output 2	0/4 -20mA , corresponding to temperature output. Max load 500 Ω
Voltage Output	DC +/- 12V
Set-Points	Contact : 240V AC, 0.5A max Activate: 2 setpoints Hi/Low, On/Off
Wash Setting	Contact : 240V AC, 30V DC 5.0A max On :0-9999 seconds /Off: 0-9999 hours
Enclosure	NEMA 4X IP65, with push-button control pad. HWD: 144 mm (5.67") x 144 mm (5.67") x 115mm (4.53")
Panel Cut-Out	138mm (5.43") x 138mm (5.43")
Weight	approx. 0.80kg (1.75lb)
Mounting Options	Panel, Wall or pipe mount
Ambient Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Location	Designed for non-hazardous areas
Temperature Compensation	NTC 30K or Pt1000 RTD with automatic compensation or manual
Power Requirement	100-240V AC +/- 10%, 50/60 Hz
Certification	CE

TX3000 pH/mV Transmitter Ordering Information

Model
TX3000	pH/ORP Controller requires 110-240V AC power. 2 Relays, 2 each 4-20mA outputs, Wash control and more

Accessories
B107	pH 7.00 buffer, 1 pint U.S.
B104	pH 4.01 buffer, 1 pint U.S.
B110	pH 10.00 buffer, 1 pint U.S.
B225	Zobell Solution, ORP standard 225mV+/-5%
C110	pH/ORP checker/simulator
