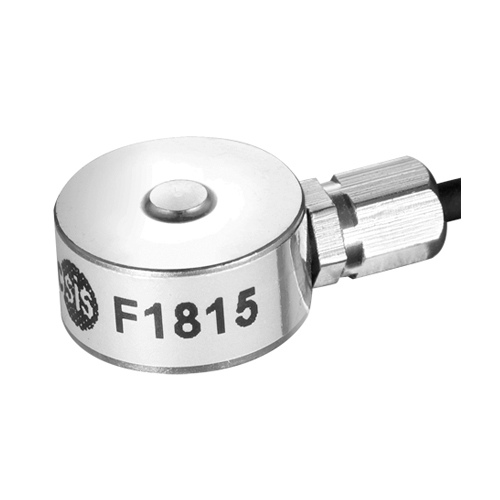

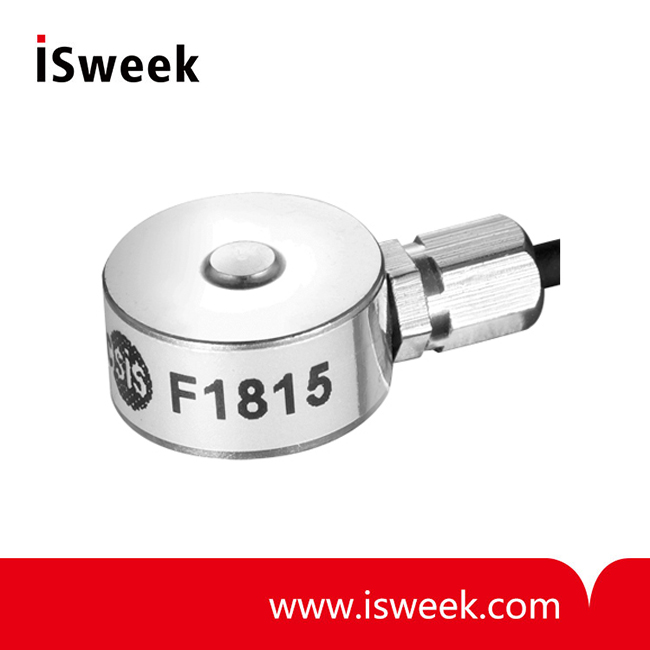

5kg to 200kg Compression Load Cell - F1815
? capacities range from 5Kg to 200kg
? Rated output: 1.5±10% mV / V
? Non-linearity: 0.5 % F.S.
? Hysteresis: 0.5 % F.S.
? Repeatability: 0.1 % F.S.
? Temp.effect on output: 0.36 % F.S. / 10oC
? Operation temp range: -20 ~ 80oC
? Protection class: IP64
- Model Number: F1815
- Data Sheet:
- Quantity:
- - +
Product Specification
F1815
Compression Load Cell

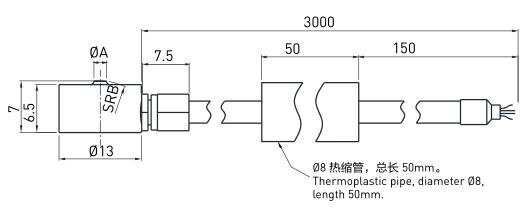

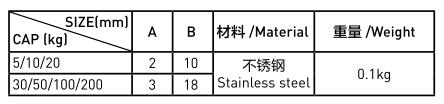

F1815 Compression Load Cell Size and Capacity
F1815 Compression Load Cell Features & Applications
? Miniature load cell with metal foil strain gauge technology.
? Made of stainless steel.
? Designed for low profile compression service.
? There is an adjustable resistance outside the load cell.
? lts capacities range from 5Kg to 200kg
? It comes complete with 3m of load cell cable.
? The diameter is 13mm.
? Suitable for force measurement in limited spaces.
? Various applications such as consumer electronics assembly, automation industry.
|
Specifications |
Technique |
|
Rated output |
1.5±10% mV / V |
|
Non-linearity |
0.5 % F.S. |
|
Hysteresis |
0.5 % F.S. |
|
Repeatability |
0.1 % F.S. |
|
Temp.effect on output |
0.36 % F.S. / 10oC |
|
Temp.effect on zero |
0.18 % F.S. / 10oC |
|
Input impedance |
350±10Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
5 V |
|
Maximum excitation |
7 V |
|
Compensated temp range |
-10 ~ 60oC |
|
Operation temp range |
-20 ~ 80oC |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
150 % F.S. |
|
Cable size |
?2×3000 mm |
|
Protection class |
IP64 |
|
Cable color code |
Input: Red(+) Black(-);
|
