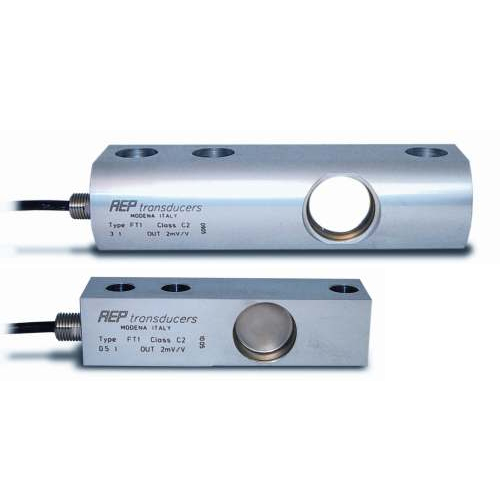

350kg to 7.5t Load Cell - FT1 - FT1A
350kg to 7.5t Load Cell FT1 - FT1A
Nominal Load from 350kg to 7.5t
Class (OIML R60): C2, C3
Combined Error: 0.020%
Material: Stainless Steel
Output: 2mV/V
Protection: IP68
- Model Number: FT1 - FT1A
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
FT1 - FT1A
350kg to 7.5t Load Cell
Dimensions [mm]
Technical Data
|
ACCURACY CLASS: OIML R60 |
C2 |
C3 |
|
LEGAL DIVISIONS |
2000 |
3000 |
|
NOMINAL LOAD (Emax) |
350-500 kg 1-2-3-5-7.5t |
|
|
MINIMUM VERIFICATION INTERVAL (Vmin) |
E max / 1000 (FT1A: E max / 1500) |
|
|
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP at nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.024% ≤ ±0.012% ≤ ±0.028%
≤ ±0.012% |
≤ ±0.020% ≤ ±0.010% ≤ ±0.020%
≤ ±0.008% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.026% |
≤ ±0.014% |
|
NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
|
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20? 350 ± 2? > 5 G? ≤ ±1% (FT1A: ≤ ±0.5%) 10 V 1-15 V 18 V |
|
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% |
|
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23C
-10/+40 °C
-20/+70 °C
-20/+80 °C
|
|
|
WEIGHT |
~ 1.1 kg |
~ 2.6 kg |
|
PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP68 (100h at 1m water column) Acciaio Inox / Stainless Steel 5m |
|
|
FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M12 |
M20 |
