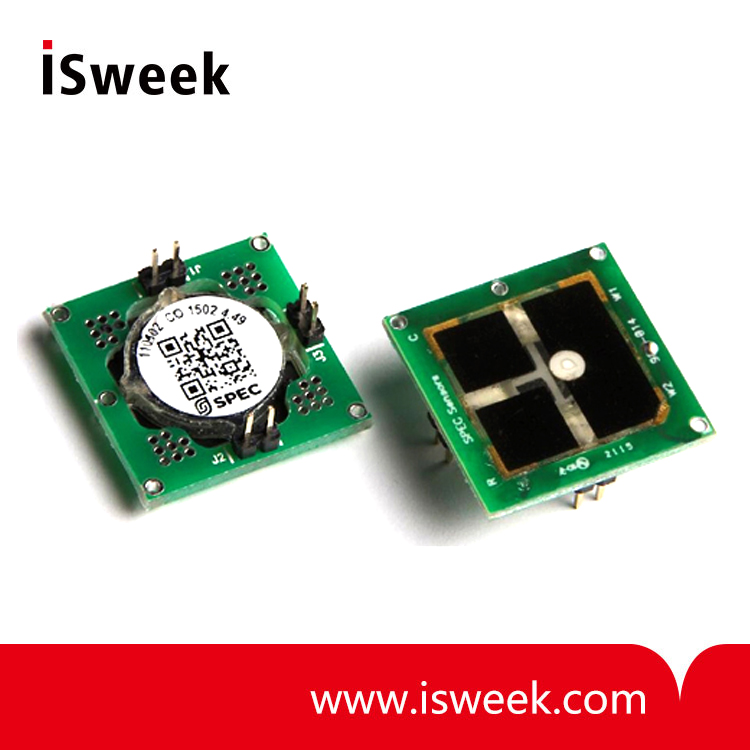

15x15 Ethanol Sensor 1000 ppm Package 110-202 - 3SP_Ethanol_1000 P

? Measurement Range: 0 to 1000 ppm
? Resolution: < 5 ppb (instrumentation dependent)
? Repeatability: < +/- 3 % of reading
? Response Time: < 180 seconds typical
? Sensitivity: 15 +/- 6 nA/ppm
? Operating Temperature: -30 to +55°C
? Operating Humidity: 0 to 100% RH non-condensing
? ROHS Compliant

Model Number: 3SP_Ethanol_1000 P
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

3SP_Ethanol_1000 P
15x15 Ethanol Sensor 1000 ppm Package 110-202

3SP_Ethanol_1000 P Ethanol Sensor Description
SPEC's printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price. SPEC's printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions. These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.

3SP_Ethanol_1000 P Ethanol Sensor Benefits
? Small Size with Low Profile (20x20x3 mm)
? Long Life (10 years expected life)
? Fast Response
? Low Power Consumption
? Individually Calibrated (NIST Traceable)
? ROHS Compliant

3SP_Ethanol_1000 P Ethanol Sensor Applications
? Law Enforcement Breathalyzers
? Evidential Breath Alcohol Testing
? Portable Breath Alcohol Tester
? Personal Breathalyzers

3SP_Ethanol_1000 P Ethanol Sensor Specifications

Measurement Range	0 to 1000 ppm
Resolution	< 5 ppb (instrumentation dependent)
Repeatability	< +/- 3 % of reading
Response Time	< 180 seconds typical
Sensitivity	15 +/- 6 nA/ppm
Expected Operating Life	> 5 years (10 years @ 23+/-3°C; 40+/-10% RH)
Operating Temperature Range	-30 to +55°C (-20 to 40°C recommended))
Operating Humidity Range - non-condensing	0 to 100% RH (15 to 95% recommended)
Power Consumption	10 to 50 uW (circuit & ambient Ethanol dependent)

3SP_Ethanol_1000 P Ethanol Sensor Cross Sensitivity

Gas/Vapor	Concentration	Typical Response PPM Ethanol
Methane	500 ppm	< 5
Ammonia	100 ppm	< 5
Nitrogen Dioxide	10 ppm	< 5
Hydrogen Sulfide	25 ppm	63.2
Carbon Monoxide	400 ppm	251.4
Ozone	5 ppm	< 5
Sulfur Dioxide	20 ppm	11.6
Nitric Oxide (NO)	50 ppm	54.5
Chlorine	10 ppm	-14.3
n-Heptane	500 ppm	-12.6
