Product Specification

MB7066 XL-MaxSonar-WRL1
High Performance Ultrasonic Precision Rangefinder

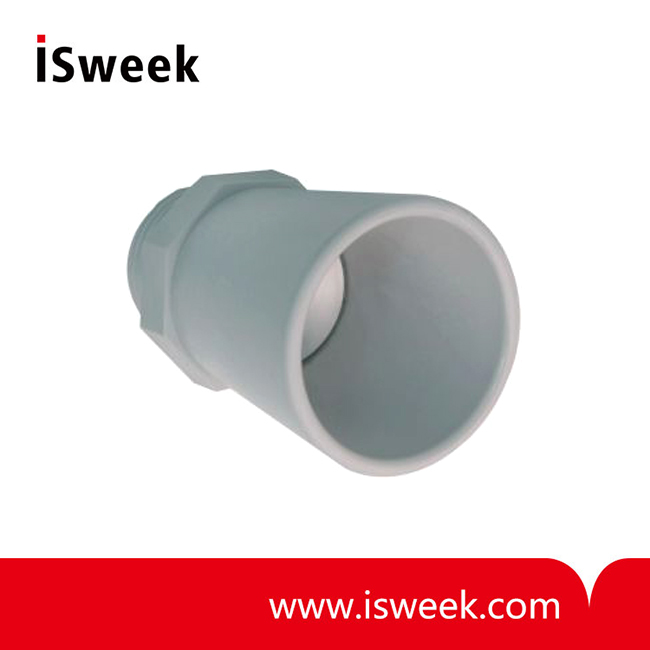

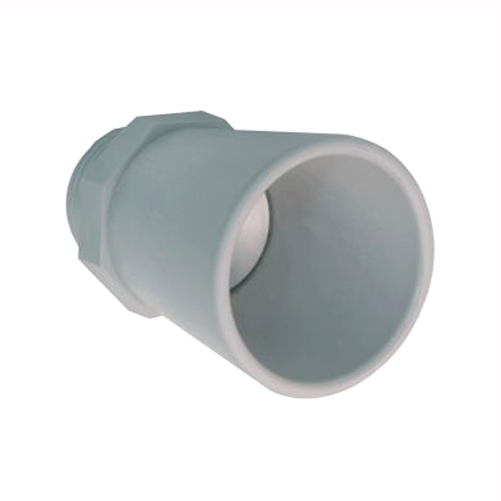

MB7066 XL-MaxSonar-WRL1 Ultrasonic Rangefinder Product Description
The XL-MaxSonar-WRL1 is our longest range (10m) outdoor sensor.

The weather resistant XL-MaxSonar-WR is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4-inch PVC pipe fittings.

High output acoustic power combined with continuously variable gain, real-time background automatic calibration, real?time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.

MB7066 XL-MaxSonar-WRL1 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 cm
? 10Hz read rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 select sensor outputs: Analog Voltage, Serial, Pulse Width
? Operates from 3.0-5.5V
? Low 3.4mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Operational Temperature from -40?C to +70?C (-40?F to +160?F)
? Real-time automatic calibration (voltage, humidity, ambient noise)
? Firmware filtering for better noise tolerance and clutter rejection
? 200,000+ Hours Mean Time Between Failure
? Weather Resistant (IP67), optional Chemical Resistant F-Option
? Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
? Our longest range outdoor, weather resistant, ultrasonic sensor
? Maximum range of 1068 cm (450 inches)
? Long range, narrow detection zone

MB7066 XL-MaxSonar-WRL1 Ultrasonic Rangefinder Features and Benefits
? Extended 10 meter range detection and outputs
? High acoustic power output
? Readings can occur up to every 100ms, 10-Hz rate
? Triggered operation provides the range reading as desired
? Fast measurement cycle
? Quality narrow beam characteristics
? Low cost, long range IP67 sensor

MB7066 XL-MaxSonar-WRL1 Ultrasonic Rangefinder Applications and Uses
? Robot ranging sensor
? Autonomous navigation
? Distance measuring
? Long range object detection
? Industrial sensor

MB7066 XL-MaxSonar-WRL1 Ultrasonic Rangefinder Part Numbers

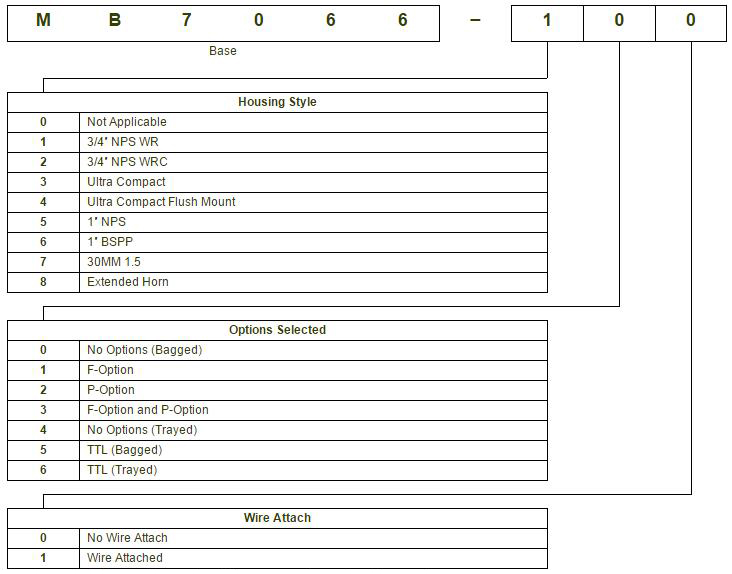

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
