Product Specification

XB OEM-Series Transmitters for Humidity and Temperature  Service-Interface
? UART (Mini-USB)

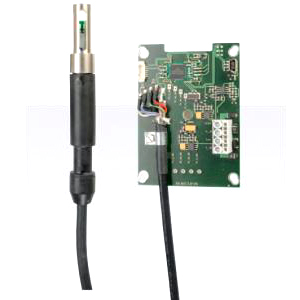

XB OEM-Series Transmitters for Humidity and Temperature Board
? Compact size
? Easy to install

XB OEM-Series Transmitters for Humidity and Temperature Outputs
? Two freely scalable analog outputs
? Available as 2-wire (XB20) or 3/4-wire (XB3x)
? UART service-interface

XB OEM-Series Transmitters for Humidity and Temperature Pt100 RTD output
? Direct 4-wire connection optional available

XB OEM-Series Transmitters for Humidity and Temperature Wide selection of probes
? PPS and steel probes with a temperature range up to 200°C available (With Hygromer HH-1R sensor up to 180 °C)
? 15mm and 25/15mm probe diameter available
? Probe lengths up to 700 mm

XB OEM-Series Transmitters for Humidity and Temperature AirChip3000
? Compensates humidity and temperature over 30,000 reference points
? 2,000 data point memory
? Dew/frost point calculation
? Sensor auto-diagnostics and automatic correction
? Active alarming and information
? ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip

XB OEM-Series Transmitters for Humidity and Temperature Measurement accuracy
Digital processing of the sensor signals by the XB OEM transmitters provides more scope and greater flexibility when compensating sensor characteristics such as linearity and temperature compensation. The ROTRONIC HYGROMER ? capacitive sensors have always been the leader in both precision and stability. With the application of digital technology, sensor performance is now further enhanced.

XB OEM-Series Transmitters for Humidity and Temperature Calibration
Calibration and sensor data are retained permanently within each XB OEM transmitter. Software-based calibration is simple and precise; there are no hard to reach, hard to adjust potentiometers. Multiple calibration points can be selected across the full measurement range.
Transmitters of the XB OEM-series are primarily used in environmental chamber applications that require highly accurate humidity measurement.

Field Service made easy with the XB OEM-Series
On-site validation and maintenance of the sensors is made simple with the XB OEM transmitters.

Use a Hygropalm handheld HP22/HP23 instrument and service cable to perform the following:
? Display of the % Relative Humidity reading from the transmitter on the Hygropalm HP22/HP23
? Single point calibration of the transmitter using a reference probe attached to the HP22/HP23
? Single and multipoint calibration of the transmitter against a known reference environment

XB OEM-Series Transmitters for Humidity and Temperature Applications
Many manufacturers of environmental chambers have chosen the ROTRONIC XB OEM transmitters. Additional applications are dryer cabinets for clothes, complex climate controls in pasta machines, process-drying and many more.
