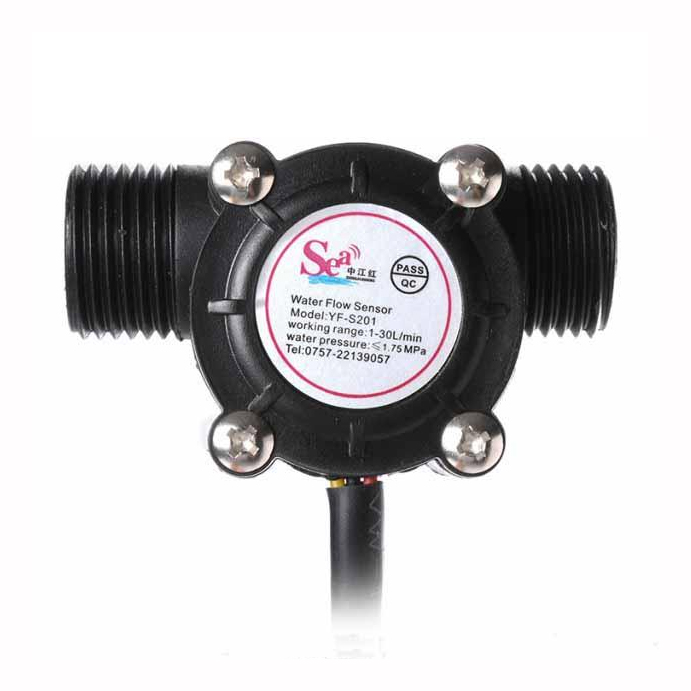

Water Flow Sensor - YF-S201

Distribution mechanical strength: ≥30N/ Arbitrary direction
Flow characteristics: F=(7.5*Q) error≤2%
High level: ≥4.6V
Low level: ≤0.5V
Electrical strength: 1250V/min
Insulation resistance: ≥100MΩ
Water pressure test: ≤1.75Mpa

Model Number: YF-S201
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

YF-S201?Water Flow Sensor?Description
The external dimensions and indicated contents are consistent with the approved drawings and technical documents approved by the procedures. The installation is well coordinated and has a permanent flow direction sign.There are no obvious cracks, bumps, burrs and deformations on the surface.The water flow sensor is connected with the 5V power supply, and is directly measured by the oscilloscope through the 8L/min water flow. The water flow sensor can be artificially placed at the high level and tested with a multimeter voltage profile.Mainly used in water heaters, drinking fountains, water vending machines, campus credit card machines and other fields.

YF-S201?Water Flow Sensor?Specification

Product appearance	Conform to the design	The external dimensions and indicated contents are consistent? with the approved drawings and technical documents approved? by the procedures. The installation is well coordinated and has? a permanent flow direction sign.
Product appearance	Conform to the design	There are no obvious cracks, bumps, burrs and deformations? on the surface.
Distribution mechanical strength	≥30N/ Arbitrary direction	Pull the wiring with a tension gauge,give the force1min/30N? force, There must be no looseness in the Wiring.
Flow characteristics	F=(7.5*Q) error≤2%	2 to 12L/min water flow is applied at the inlet of the water flow? sensor, and its output frequency characteristics should meet? the standard requirements, formula F is Hz, Q is L/min.
High level	≥4.6V	The water flow sensor is connected with the 5V power supply,? and is directly measured by the oscilloscope through the 8L/min? water flow. The water flow sensor can be artificially placed at? the high level and tested with a multimeter voltage profile.
Low level	≤0.5V
Electrical strength	1250V/min	In the case with any lead wire, the experimental voltage is 1250V,? the setting current is 8mA, the experimental time is 1min, no? breakdown, no flashover.
Insulation resistance	≥100MΩ	In 500V/ measuring insulation resistance.
Output duty cycle	50%± 10%	The flow sensor is connected to the 5V power source and is? directly measured by an oscilloscope using the 8L/min curren.
low temperature	Flow characteristics, output waveform should meet the technical requirements.	1) place the sample in -20℃ constant temperature box 2h,? remove and stay 1h. 2) place the sample in -90℃ constant temperature box 2h,? remove and stay 1h. 3) and then put the sample in the -20℃ constant temperature? box 0.5h, put in -90℃ constant temperature box 0.5h., repeat? third 5 cycle inspection.
high temperature
thermal shock
damp		The sample at the temperature of 40± 2℃, the relative humidity? of 90% ~ 95%RH environment 48h, and then placed 2h at room? temperature to confirm, re test the parameters, and parts without? cracks, relaxation, deformation and other abnormalities.
Water pressure test	≤1.75Mpa	Stop the water flow sensor plug, applied pressure is less than? or equal to 1.75MPa at the other end, the flow sensor without? any leakage.
