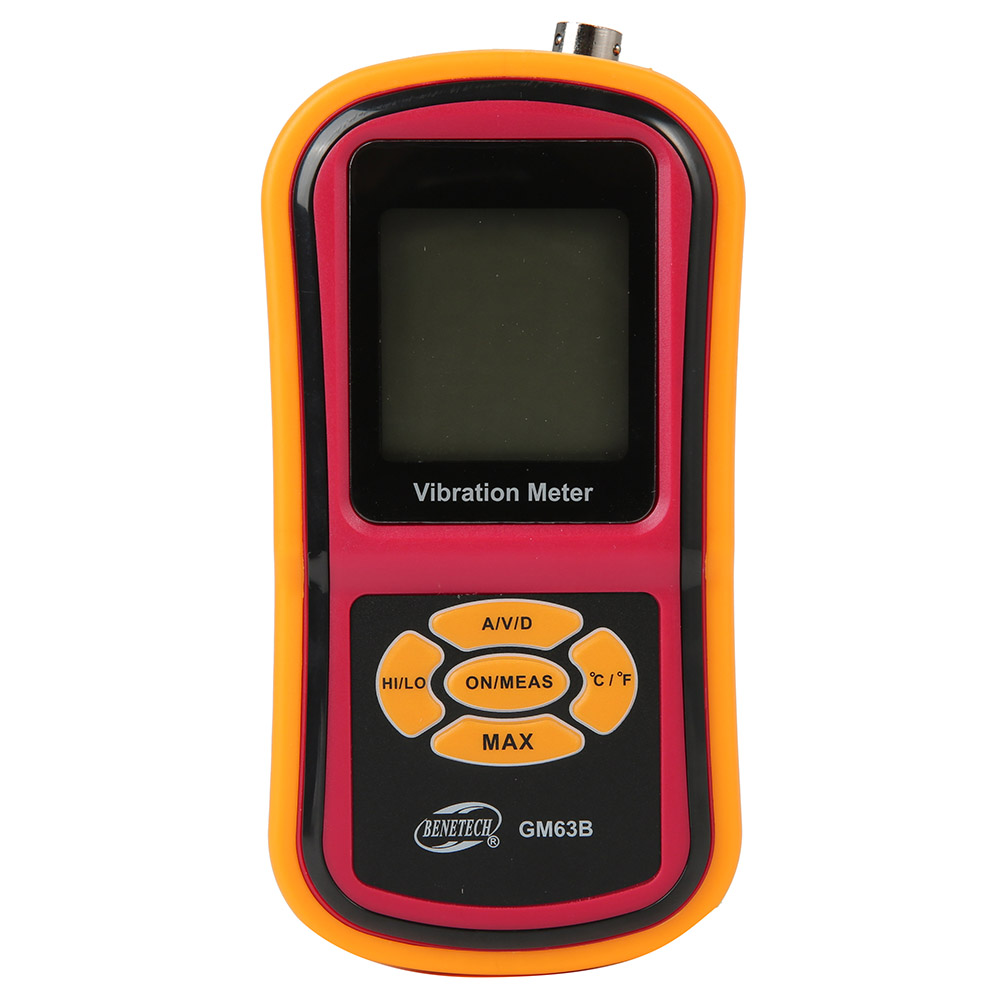

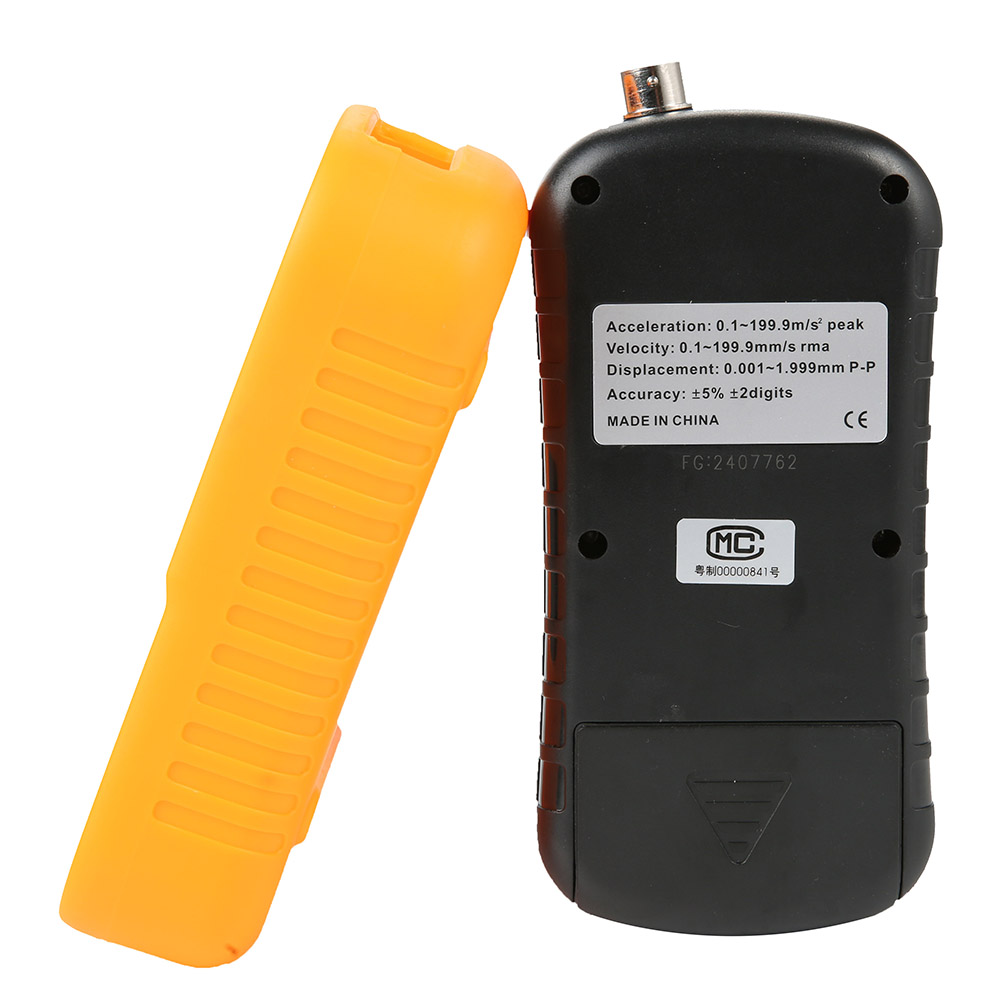

Vibration Meter - GM63B

? Measuring range:
Acceleration: 0.1~199.9m/s2 peak
Velocity: 0.1~199.9m/s rms
Displacement: 0.001~1.999 mm (P-P)
? Accuracy: ±5%±2digits
? LCD display: 3 1/2 digits display
? Operation temperature range: 0~40℃
? Operating humidity range: 30~90%RH
? Low battery indication: 6.4V±0.2V

Model Number: GM63B
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM63B Vibration Meter Introduction
This product adopts piezoelectric effect of artificial polarized ceramic for design. it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. Field.

GM63B Vibration Meter Features
? LCD display measurement result and conditions directly
? Measures acceleration (m/s² peak), velocity (mm/s ms), and displacement (mm p-p)
? Selective vibration characteristic
? Uses hi- sense of vibration sensor, measuring accurately

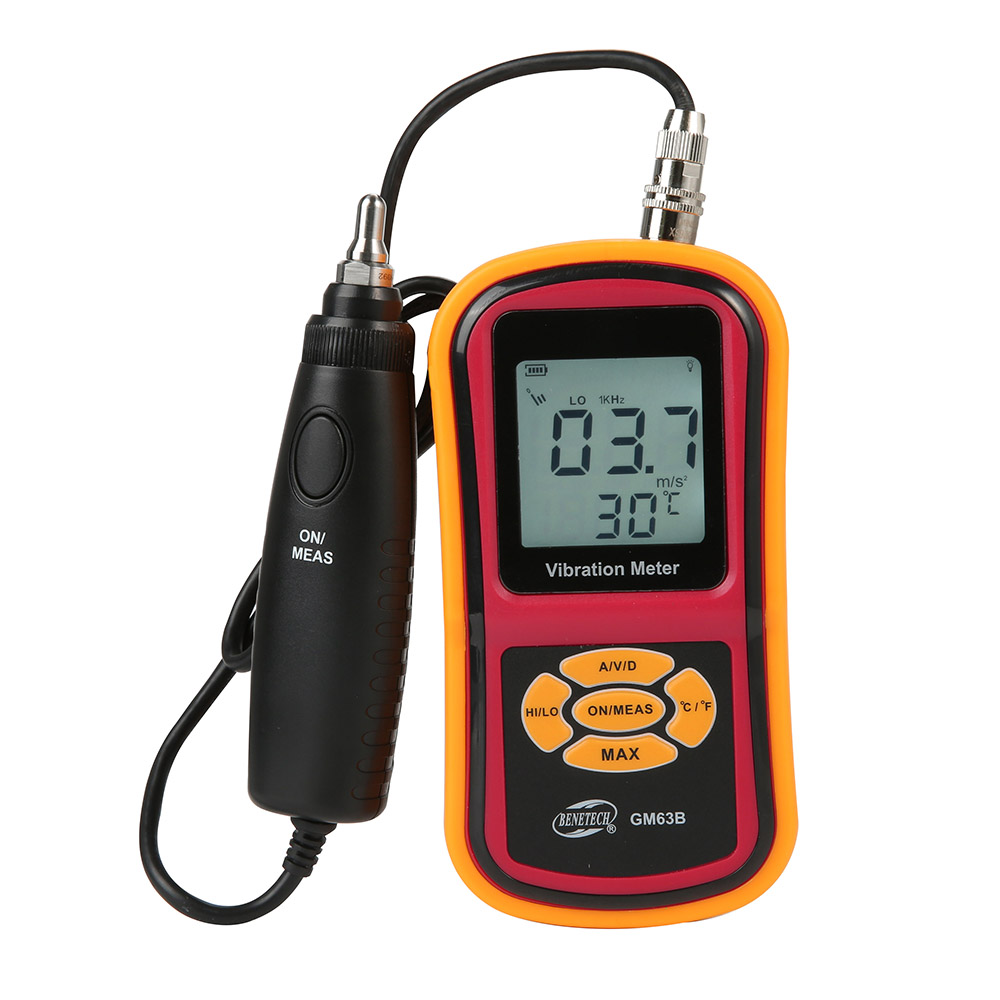

? Equipped two probes (S and L) to adapt the different measurement requirement
? Provides a magnetic probe to fit the condition uneasy hold on by hand
? Low battery indication
? Auto turn off function
? LCD back light function
? Maximum value hold function
? Temperature unit °C/°F selection

GM63B Vibration Meter Specifications

Technical parameter	Technical specification
Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration	0.1~199.9m/s² peak
Measurement range of velocity	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s²
Measurement accuracy	±5%±2digits
Measurement frequency range of acceleration	10Hz ~ 1KHz (LO) 1KHz ~ 15KHz (HI)
Measurement frequency range of velocity	10Hz ~ 1KHz (LO)
Measurement frequency range of displacement	10Hz ~ 1KHz (LO)
Displays update cycle	1 second
LCD display	3 1/2 digits display
Single output	AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connected
Power supply	9V battery
Static current	≤15 μA
Operating current	≤25 mA
Battery life	20 hours continuous use
Auto power-off	Turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
Low battery indication	6.4V±0.2V
Dimensions	72x35x145mm
Weight	229g (not including battery)
Temperature range	-10℃~80℃
Temperature accuracy	±2℃
