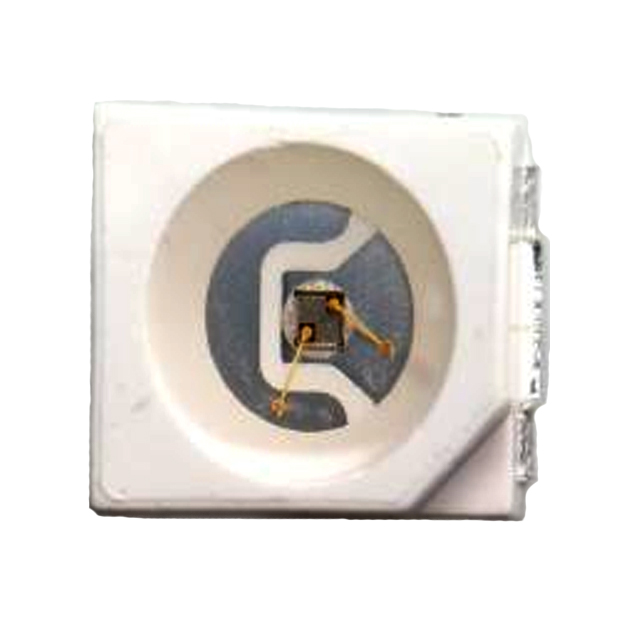

UVB Sensor - GUVB-S11SD
- Chip size:0.4mm,SMD 3528 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Model Number: GUVB-S11SD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVB-S11SD?UVB Sensor Ftatures
- Chip size:0.4mm,SMD 3528 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
2.?GUVB-S11SD?UVB Sensor?Application
UV Index Monitoring

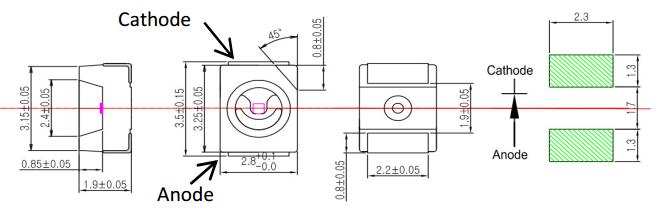

3. GUVB-S11SD?UVB Sensor?Outline Diagrams and Dimensions
4. GUVB-S11SD?UVB Sensor?Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1μ~100m W/cm2
Soldering Temperature: 260℃
5. GUVB-S11SD?UVB Sensor?Characteristics (at 25℃)
Dark Current: 1nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.11A/W
Spectral Detection Range: 240~320nm
Active area: 0.076mm2
