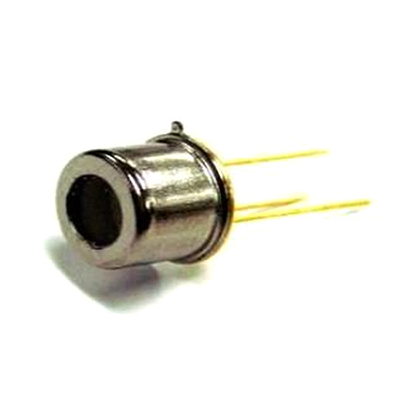

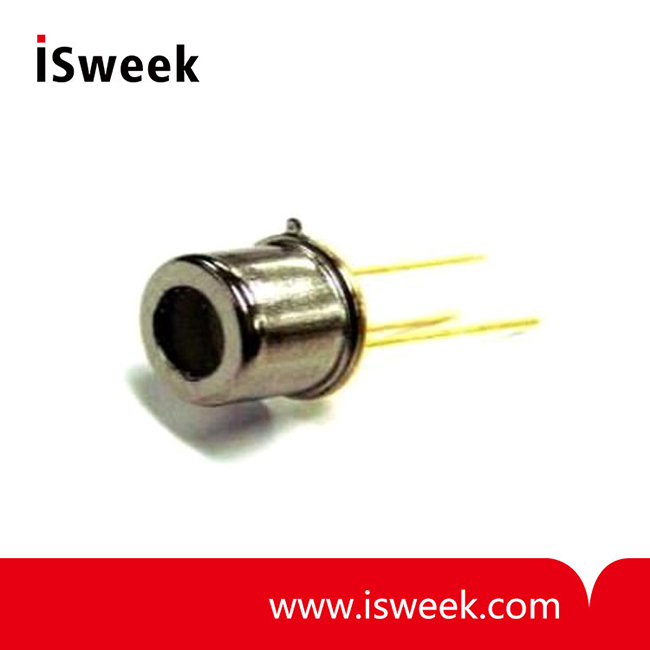

UV-B Sensor - GUVB-T21GD-U
-Chip size: 3.4mm, TO 39 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Responsivity: 0.13A/W
- Spectral Detection Range: 220~320nm
- Active area: 6.894mm2
- Model Number: GUVB-T21GD-U
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVB-T21GD-U UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. GUVB-T21GD-U UV Sensor Applications
UV-B Lamp Monitoring
UV-B LED Monitoring

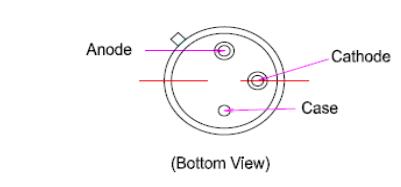

3. GUVB-T21GD-U UV Sensor Outline Diagrams and Dimensions
4. GUVB-T21GD-U UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.001μ~100m W/cm2
Soldering Temperature: 260℃
5. GUVB-T21GD-U UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 90nA
Photo Current(Typ.): 7.4 μA
Temperature Coefficient: 0.1%/℃

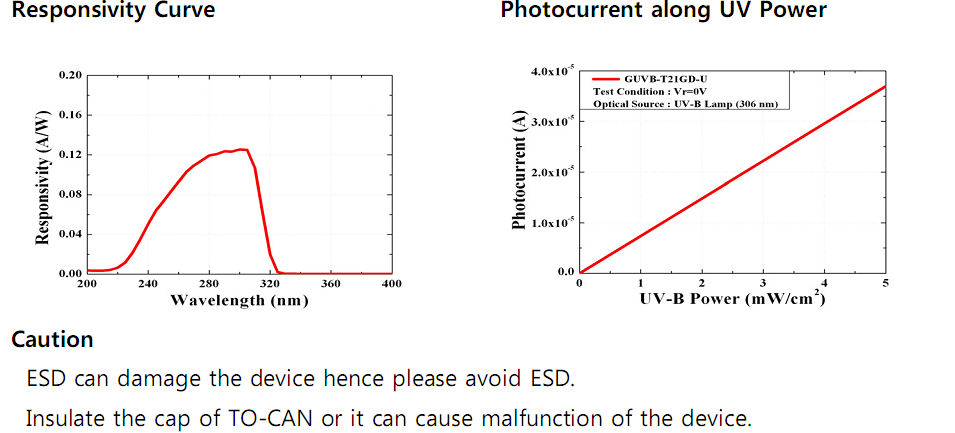

Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 6.894mm2
