UV-B Sensor - GUVB-T11GD-L
-Chip size:1.4mm.TO 46 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Spectral Detection Range: 220~320nm
- Active area: 1.536mm2
- Model Number: GUVB-T11GD-L
- Data Sheet:
- Quantity:
- - +
Product Specification
1. UV Sensor?GUVB-T11GD-L?Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current?
2. UV Sensor?GUVB-T11GD-L Applications
UV-B Lamp Monitoring
UV-B LED Monitoring

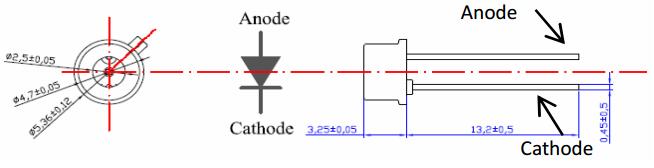

3. UV Sensor?GUVB-T11GD-L?Outline Diagrams and Dimensions
4. UV Sensor?GUVB-T11GD-L?Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.01μ~100m W/cm2
Soldering Temperature: 260℃
5. UV Sensor?GUVB-T11GD-L?Characteristics (at 25℃)
Dark Current(Max.): 20nA
Photo Current(Typ.): 1.5μA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 1.536mm2
