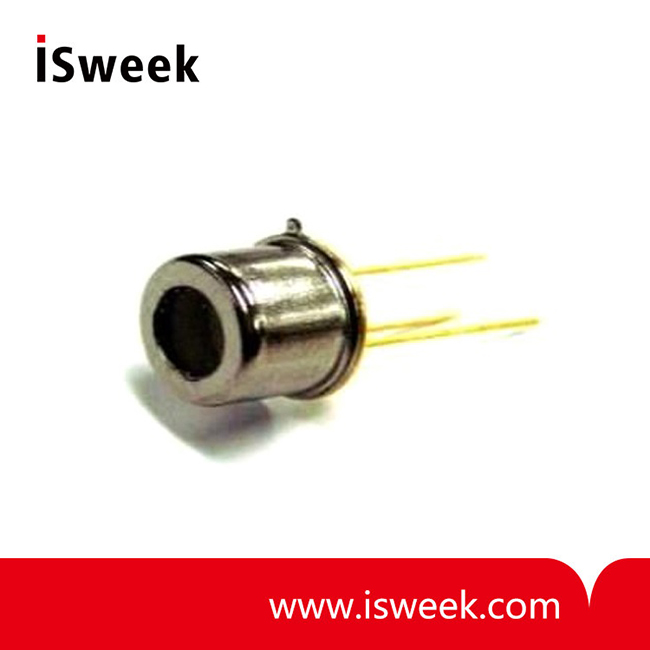

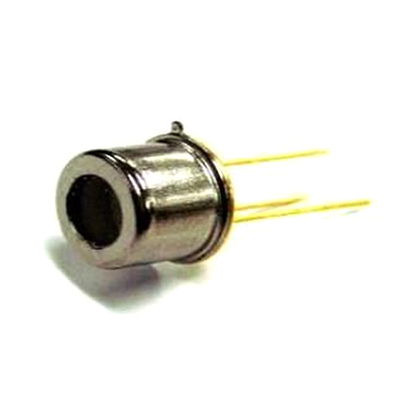

UV-A Sensor - GUVV-T20GD-U
- Dark Current(Max.): 90nA
- Responsivity: 0.15A/W
- Spectral Detection Range: 230~395nm
- Chip size 3.4mm; TO 39 PKG
- Indium Gallium Nitride Based Material
- Photovoltaic Mode Operation
- High Responsivity & Low Dark Current
- Model Number: GUVV-T20GD-U
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVV-T20GD-U UV Sensor Features
Indium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. GUVV-T20GD-U UV Sensor Applications
Full UV Band Monitoring
UV-A Lamp Monitoring
Sterilization Lamp Monitoring

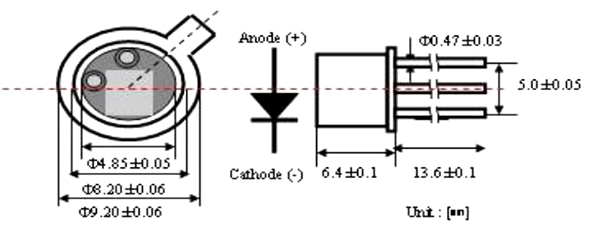

3. GUVV-T20GD-U UV Sensor Outline Diagrams and Dimensions
4. GUVV-T20GD-U UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.001μ~100m W/cm2
Soldering Temperature: 260℃

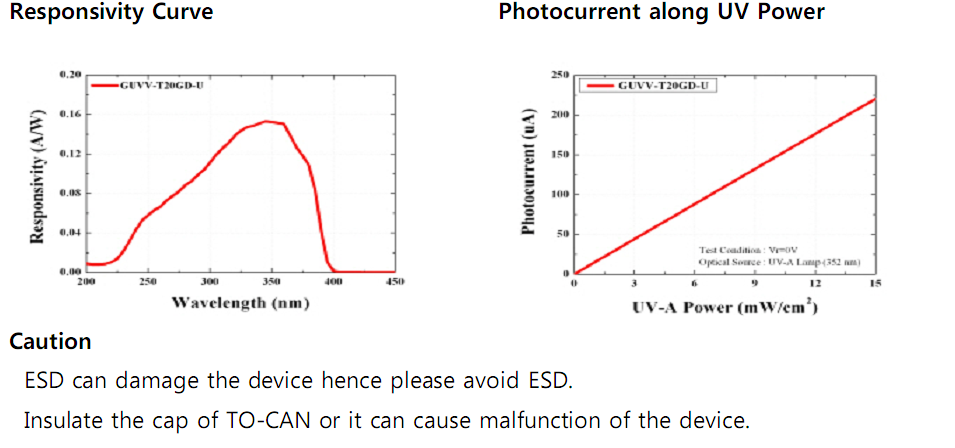

5. GUVV-T20GD-U UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 90nA
Photo Current(Typ.): 14.7μA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.15A/W
Spectral Detection Range: 230~395nm
Active area: 6.894mm2
