Ultrasonic Sensors - MA40S4S
1. Compact and light weight.
2. High sensitivity and sound pressure.
- Model Number: MA40S4S
- Data Sheet:
- Quantity:
- - +
Product Specification
MA40S4S Ultrasonic Sensors Specifications:
|
Operating Temperature Range |
-40℃ to 85℃ |
|
Construction |
Open type |
|
Center Frequency |
40kHz |
|
S.P.L. |
120dB typ. (0dB=0.02mPa) |
|
Directivity |
80deg. (typ.) |
|
Capacitance |
2550pF |
|
Capacitance Tolerance |
±20% |
|
Max. Input Voltage |
20Vp-p Continuous signal, Square wave |
MA40S4S Ultrasonic Sensors Features:
1. Compact and light weight.
2. High sensitivity and sound pressure.
MA40S4S Ultrasonic Sensors Applications
|
Automotive Usage |
Infotainment |
|
Other Usage |
1.Obstacle detection in home 2.Distance measurement |

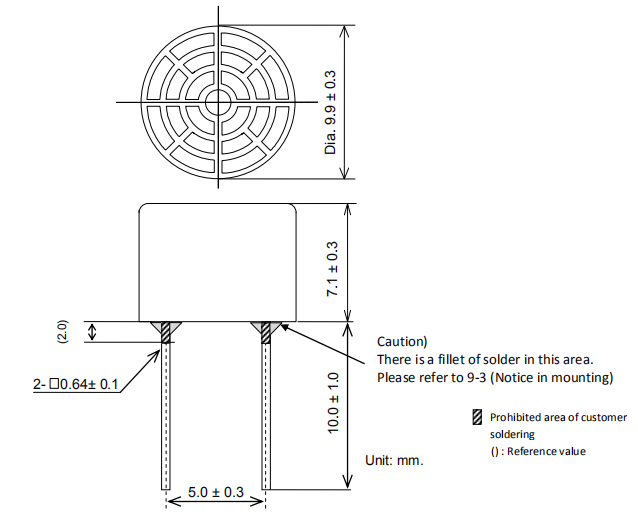

MA40S4S Ultrasonic Sensors Dimensions
