Product Specification

Ultrasonic Proximity Sensor Module for Water Proof Types of Ultrasonic Sensors

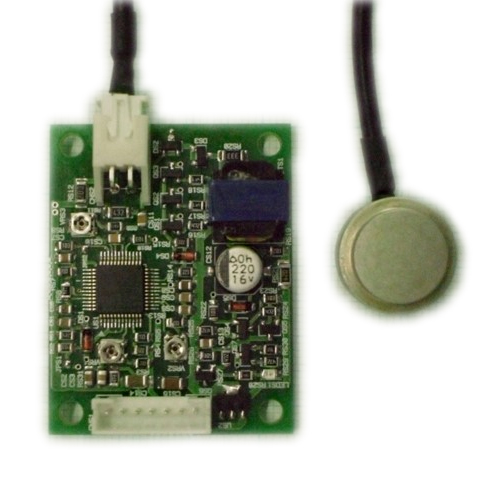

HG-P40WP Ultrasonic Proximity Sensor Module Description
? Using only a single sensor(transceiver sensor) unit for both transmittance and receiving ultrasonic waves
? Convenient for distance measuring and object detection.
? Two types of transmit mode for convenience
  - Free Run mode : with a power supply, sensor/module itself transmits trigger and burst signal – for basic & stand alone application
  - External Trigger : External system(a controller or processor circuit) controls the trigger signals – for advance application such as multi-sensor system
? Input DC voltage is applicable in the wide range from 6 V to 15 V
? Output signal of 5V TTL level is applicable to processor circuit usage or controllers of industrial system.
? Four simultaneous output signals
  - Ultrasonic waveforms of received and amplified signals
  - Squared signals in TTL level corresponding to detected ultrasonic waveforms
  - Squared signal that the pulse-width is proportional to distance
  - Current signal (10 mA) is outputted when object is detected in a preset range
  - The preset of a maximum detection range is adjustable in the range from 0.5 to 6 m (typically 3 m in factory release)
※ The setting of a special detection range in distance is available for volume orders
? High performance ASIC Chip is mounted in the module for stable transmission and sensitive reception (Maximum amplification is about 5,000 times)
? Long distance detection is available by optimized design

HG-P40WP Ultrasonic Proximity Sensor Module Features
? Multi-function transceiver model for water proof types of ultrasonic sensors
? Two types of transmit modes: Free Run/ External Trigger
? Free voltage in power supply (DC 6 V ~ 15 V)
? Four simultaneous output signals
  - Ultrasonic waveform of a received and amplified signal
  - Squared signal in TTL level corresponding to ultrasonic waveform
  - Squared signal that its pulse-width is proportional to distance
  - Current output signal for proximity detection
? Employing a high performance ASIC Chip
? Detection of obstacles located at a long distance

HG-P40WP Ultrasonic Proximity Sensor Module Application
? Distance Measurement, Obstacle detection for AGV and robot, and industrial machinery etc., Outdoor parking lot management, Safety facility management and risk alerts, customers facilities, power saver, and automation equipment, etc.

HG-P40WP Ultrasonic Proximity Sensor Module Specification
