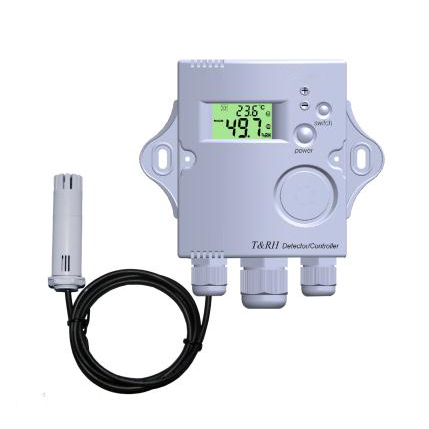

Temperature & RH Detector/Controller - TKG-TH Series

? Temperature? Measuring range?: -20°C~60°C(default)?
? Humidity? Measuring range?: 0 -100%RH?
? Temperature? Accuracy?: ±0.5°C (20~40°C)?
? Humidity Accuracy?: ±4.5%RH (25°C?, 15%-85%RH)?
? Protection? class?: IP40?
? Power supply?: 24VAC±10% or 230VAC±10% selectable?
? Storage Temperature?: 20°C-60°C
? Storage Humidity 5%RH~70%RH non condensing?

Model Number: TKG-TH Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TKG-TH
Temperature & RH Detector/Controller

TKG-TH Series Temperature & RH Detector/Controller Features
? Designed for detection temperature and relative humidity
? High accuracy sensors with combined temperature and relative humidity together with the digital auto compensation
? Outside sensing probe design for measurements more accurate, no influence from components heating
? Special white backlit LCD can be selected with displaying both actual humidity and temperature
? Smart structure for easy disassembly
? Provide three types of wall mounting and duct mounting, and split type
? Provide up to two dry contact outputs with each 5amp
? Friendly operation buttons for setup and operating
? Modbus RS485 communication optional
? ZigBee wireless optional
? CE-Approval

TKG-TH Series Temperature & RH Detector/Controller Typical Applications
? High end HVAC systems
? Ventilation systems
? Detection and display temperature and RH measurements
? Control temperature and humidity devices
? Modbus communication systems
? Wireless receiving and transmission of temperature& RH

TKG-TH Series Temperature & RH Detector/Controller Specifications

	Temperature	Humidity
Accuracy	±0.5°C (20~40°C)	±4.5%RH (25°C, 15%-85%RH)
Measuring range	-20°C~60°C(default) 0°C~50°C 0°C~60°C selectable in orders	0 -100%RH
Display resolution	0.1°C	0.1%RH
Stability	±0.1°C	±1%RH per year
Storage environment	20°C-60°C, 5%RH~70%RH non condensing
Connection	Screw terminals / wire diameter:1.5mm2
Housing	PC/ABS fireproof material
Protection class	IP40
Output	2 x 5Amp dry contacts
RS485 interface (option)	Modbus RS485 interface optional
Wireless module (option)	ZigBee protocol
Power supply	24VAC±10% or 230VAC±10% selectable
Power cost	230V: ≤2.8W; 24V: ≤2.0W
Dimension	Wall mounting: 85(W) x 100(H) x 50(D)mm + 65mm (extend outside) x ? 19.0mm Duct mounting: 85(W) x 100(H) x 50(D)mm + 135mm (sensor probe) x ? 19.0mm
Net weight	Wall mounting: 280g Duct mounting: 290g

TKG-TH Series Temperature & RH Detector/Controller Models Guide

TKG-TH- A 0 C D Y -Tab
A:	the sensor installation type
	1: wall mounted with the external sensor in an adown probe 2: probe duct mounted 3: split sensor with 2 meters cable connection
C:	relay dry contact output
	0: no dry contact output 1: 1xdry contact output (for humidity control) 2: 2xdry contact outputs (for humidity and temperature control)
D:	Communication option
	0: no communication 1: Modbus RS485 interface 2: with ZigBee wireless module
Y:	power supply
	F: 24VAC power supply A: 230VAC power supply
-Tab	temperature range
	T26: -20°C~60°C (default) T05: 0°C~50°C T06: 0°C~60°C
	With Tab: the temperature range is -20°C~60°C (default)
