Product Specification

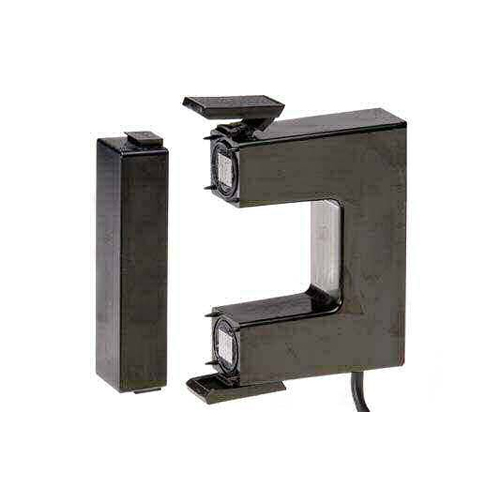

The 608 Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

These current transformers are a weather proof design suitable for use outdoor or in direct burial applications. The transformer cases are UV stabilized thermoplastic and filled with polyurethane resin. The mating surfaces of the transformer cores are protected by a rubber 'O' ring.

608 Series Split-core Current Transformer Features
Secondary Cable: Two No. 16 AWG, 6’ Long, Direct Burial, UV Res. UL Type TC

608 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor:
  Models 608-501 – 608-202: 1.33 at 30°C amb., 1.00 at 55°C amb
  Models 608-252 – 608-322: 1.00 at 30°C amb., 0.70 at 55°C amb
Weight: 7.5 lbs

608 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment

608 Series Split-core Current Transformer PART NUMBERS
