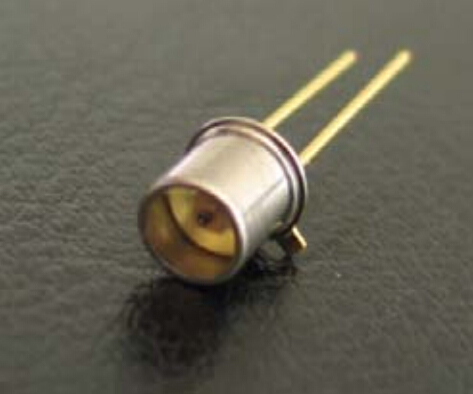

SiC-based UV Photodiode - ST-ABC-M
? Broad band UVA+UVB+UVC photodiode
? Photovoltaic mode operation
? TO-46 metal housing
? Good visible blindness
? High responsivity and low dark current
- Model Number: ST-ABC-M
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
ST-ABC-M UV Photodiode General Features:
? Broad band UVA+UVB+UVC photodiode
? Photovoltaic mode operation
? TO-46 metal housing
? Good visible blindness
? High responsivity and low dark current
ST-ABC-M UV Photodiode Applications:
UV index monitoring, UV radiation dose measurement, flame detection
ST-ABC-M UV Photodiode Specifications:
|
Parameters |
Symbol |
Value |
Unit |
|
Maximum ratings |
|
||
|
Operation temperature range |
Topt |
-25 - 200 |
°C |
|
Storage temperature range |
Tsto |
-40 - 120 |
°C |
|
Soldering temperature (3 s) |
Tsol |
260 |
°C |
|
Reverse voltage |
Vr-max |
-20 |
V |
|
General characteristics (25°C) |
|
||
|
Chip size |
A |
0.25 |
mm2 |
|
Dark current (Vr = -5 V) |
Id |
<0.1 |
nA |
|
Temperature coefficient |
Tc |
0.1 |
%/°C |
|
Capacitance (at 0 V and 1 MHz) |
Cp | 27 |
pF |
|
Spectral response characteristics (25°C) |
|
||
|
Wavelength of peak responsivisity |
λp |
275 |
nm |
|
Peak responsivisity (at 275 nm) |
Rmax |
0.097 |
A/W |
|
Spectral response range (R=0.1×Rmax) |
- |
220-350 |
nm |
|
UV-visible rejection ratio (Rmax/R400 nm) |
- | >104 | - |
