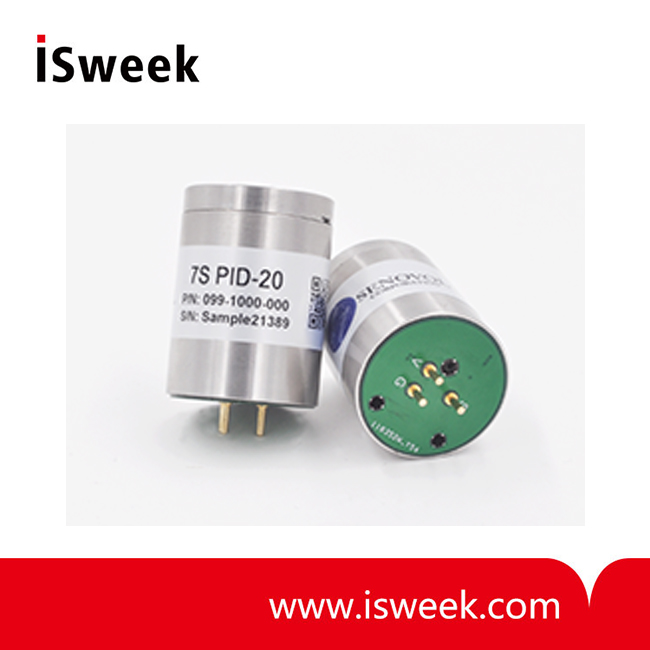

SemeaTech Photoionization Detector (PID) Sensors - 7-Series
Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs).
- Model Number: 7-Series
- Data Sheet:
- Quantity:
- - +
Product Specification
Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs). In general, any compound with ionization energy (IE) lower than that of the lamp photons can be measured. Based on its proprietary ultraviolet (UV) lamp technology, Senovol PID sensors have the advanced features of high UV outputs, and long lamp life spans.
Product Dimensions
Performance Characteristics
|
Photon energy |
10.6 eV |
|
Measurement range |
0 ~ 20 ppm |
|
Resolution |
1 ppb |
|
Response time (T90) |
< 10 seconds |
|
Baseline shift (20℃) |
70 ± 30 mV |
|
Linearity |
linear from 0.05 ~ 3.3 V |
Electrical
|
Supply voltage |
3.3 ~ 5.0 V (3.3 V recommended) |
|
Working current |
< 180 mA @ 3.3 V |
|
Output signal |
0.05 ~ 3.3 V |
Mechanical
|
Enclosure |
Stainless steel |
|
Weight |
70 grams |
Environmental
|
Temperature range |
-20℃ ~ +50℃ |
|
Pressure range |
1 atm ± 10% |
|
Humidity range |
0% ~ 99%RH Non-condensing |
