SemeaTech Photoionization Detector (PID) Sensors - 4-Series
Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs).
- Model Number: 4-Series
- Data Sheet:
- Quantity:
- - +
Product Specification
Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs). In general any compound with ionization energy (IE) lower than that of the lamp photons can be measured.

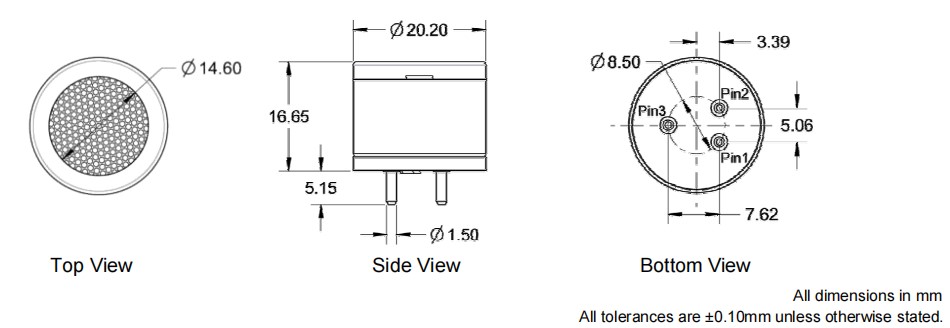

Product Dimensions
Performance Characteristics
|
Photon energy |
10.6 eV |
|
Measurement range |
0 ~ 10,000 ppm isobutylene |
|
Resolution |
1 ~ 2,000 ppb isobutylene |
|
Response time (T90) |
< 5 seconds |
|
Baseline shift (20℃) |
70 ± 30 mV |
|
Linearity |
linear from 0.045 ~ 2.5 V |
Electrical
|
Supply voltage |
3.2 ~ 5.5 V |
|
Working current |
< 80 mA at 5 V |
|
Output signal |
0.045 ~ 2.5 V |
Mechanical
|
Enclosure |
Stainless steel |
|
Weight |
15 grams |
Environmental
|
Temperature range |
-20℃ ~ +50℃ |
|
Pressure range |
1 atm ± 10% |
|
Humidity range |
15% ~ 95%RH Non-condensing |
