SemeaTech Electrochemical CO-10000 Sensors - 3-Series CO-10000

This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NH3 gas with ultra-high resolutions.

Model Number: 3-Series CO-10000
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Product Description：

This sensor is designed for the measurement of CO concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 3-series electrochemical CO sensors which made by the other manufacturers.

Performance Characteristics：

Nominal Range	0 ~ 10,000 ppm
Maximum Overload	20,000 ppm
Sensitivity (20℃)	0.030 ± 0.006 μA/ppm
Response Time (T90)	≤ 30 s
Zero Signal (20℃)	-3 ~ +10 ppm
Baseline Shift (-20℃ ~ 50℃)	< 20 ppm
Resolution	1 ppm
Linearity	Linear up to 10,000 ppm
Bias Voltage	0 mV

Environmental：

Temperature Range	-20℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

Life Time：

Long Time Output Drift	< 2% signal/month
Recommended Storage Temp	10℃ ~ 30℃
Expected Operating Life	3 years in clean air
Storage Life	6 months in original packaging
Warranty	12 months

Intrinsic Safety Data：

Max. Current at 20,000ppm CO	< 1 mA
Max. O/C Voltage	1.3 V
Max. S/C Current	< 1.0 A

Physical Characteristics：

Housing Material	ABS
Weight (Nominal)	23 g
Orientation	None

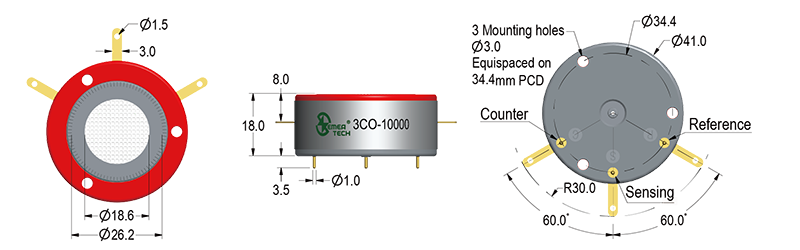

Product Dimensions：

All dimensions in mm

All tolerances ±0.10mm unless otherwise stated

Temperature Data：

Safety Note：

This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
