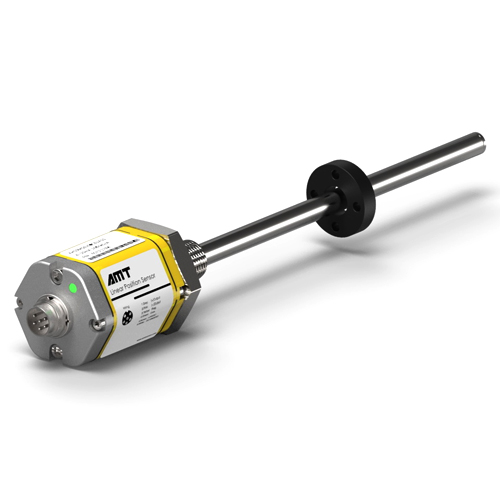

Rod style Position Sensor - KH Series
Rugged Industrial Sensor
Linear, Absolute Measurement
Non-Contact Sensing Technology
Direct Analog Outputs (Interface Options)
Linearity Deviation Less Than ±0.01%
Repeatability Within ±0.001%
LED For Sensor Diagnostics
Velocity Output Options
- Model Number: KH Series
- Quantity:
- - +
Product Specification
Features:
■ Rugged Industrial Sensor
■ Linear, Absolute Measurement
■ Non-Contact Sensing Technology
■ Direct Analog Outputs (Interface Options)
■ Linearity Deviation Less Than ±0.01%
■ Repeatability Within ±0.001%
■ LED For Sensor Diagnostics
■ Velocity Output Options
■ High-Speed Update Options
■ Dual Outputs Options (Current or Voltage)
■ Full Stroke Null/Span adjustment
| Interface |
Analog |
SSI | start/stop |
| Output |
4~20mA; 0~10V |
25, 24, 26 Binary/Gray | RS422 |
| Interface | Profibus |
Canbus |
Modbus |
| Output |
Profibus - DP |
Protocal: Basic / Open | RS485 |
| Stroke | 25mm~7620mm | ||
| Accuracy | Linearity Deviation <±0.01%F.S., Repeatability <±0.001%F.S. | ||
| Installation |
M18x1.5 , 3/4" -16UNF-3A |
||
| Protection |
IP67, Pressure rating: 35MPa / 70MPa peak |
||
| Temperature | -40℃ ~ +85℃, start/stop: -40℃ ~ +105℃; | ||
|
Voltage |
Input : 24VDC (-15/+20%), Polarity protection , Overvoltage protection | ||
| Magnet | OD33; OD25.4; OD17.4; OD63.5 | ||
Dimensions:
| NO. | Define |
Analog |
SSI | start/stop | Profibus |
Canbus |
|
| A | Connector Height | Connector:12mm; Cable: 16mm | Connector:16mm; Cable: 18mm | ||||
| B |
Head length |
68mm |
78mm | ||||
| C |
Null Zone |
50.8mm |
|||||
| D |
Dead Zone |
63.5mm | |||||
| E | Rod O.D |
7mm; 8mm; 10mm ; 12mm |
|||||
| F |
Magnet O.D. |
OD17.4; OD20; OD25.4; OD33; OD63.5 | |||||
Wiring & Diagnostic Display:
