Product Specification

CR Magnetics CR8400 Series of Wire Lead Current Transformers are available in a wide range of sizes and materials to meet any AC current sensing needs.  Major applications include ground fault relays, current measurements, power monitoring and over/under current sensing. This series of transformers provides the benefit of a high accuracy remote monitor for cost sensitive projects. Our Revenue Grade CTs (-N) are made from a nickel alloy core which provides the most linear response over temperature and current level.

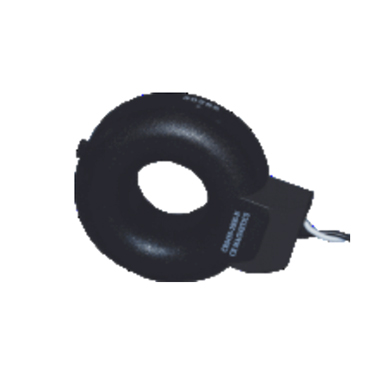

CR8459-2000-N Revenue Grade Wire Lead Current Transformer Features
? Low cost
? 5 standard sizes
? Non-contact, isolated measurement

CR8459-2000-N Revenue Grade Wire Lead Current Transformer Specifications
? Case Material: Polypropylene Resin
? Construction: Epoxy Encapsulated
? Operating Temprature: -25°C to +66°C
? Insulation Resistance: 100 M ohms @ 500 Vdc
? High Potential: 1500 volts x 1 minute
? Frequency: 50 to 400 Hz

CR8459-2000-N Revenue Grade Wire Lead Current Transformer Applications
? Over/under current sensing
? Ground Faults
? Current measurements
? Power monitoring
