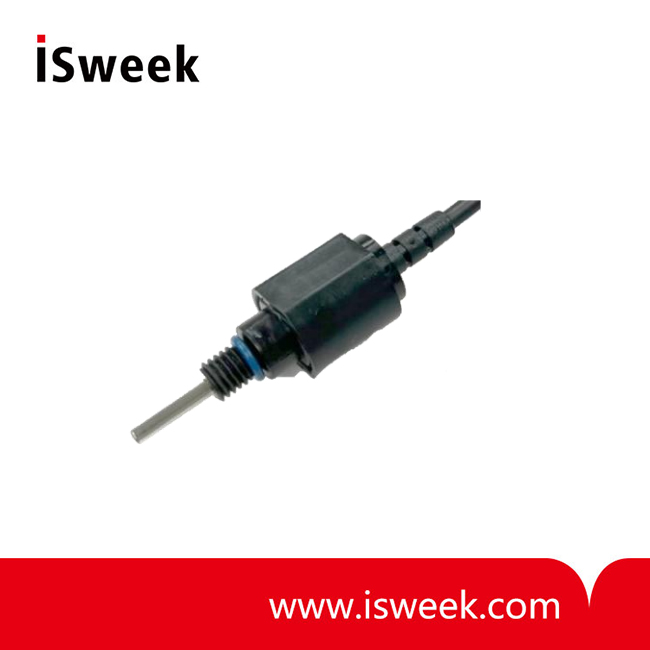

Pressure Temperature Sensor - SY-PT Series
Analog Voltage Output
Absolute Pressure
Integrated Sensor for Fuel Cell
- Quantity:
- - +
Product Specification
Pressure Temperature Sensor SY-PT Series Description:
? Integrated Sensor for Fuel Cell
Pressure Temperature Sensor SY-PT Series PRODUCT SPECIFICATION:
|
Detection range |
0.2~3.0 bar |
|
Accuracy |
±1.8 %FS |
|
Supply Voltage |
5 V DC |
|
Output Voltage |
0.4 ~4.65 V |
|
Current Consumption |
12 mA |
|
NTC Resistance (@25℃) |
10 kΩ±1% |
|
NTC B (25/85) |
3,435 K±1% |
|
Temperature Response time |
3.5 Sec (25/85) |
|
Measuring Temperature |
- 40℃ ~120℃ |
|
Operation Temperature |
- 40℃ ~100 ℃ |
|
Storage Temperature |
- 40℃ ~100 ℃ |
