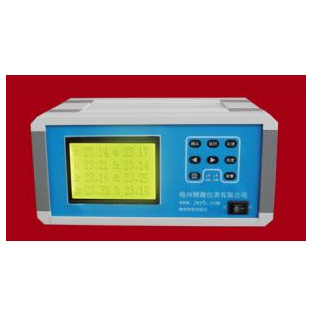

Product Specification

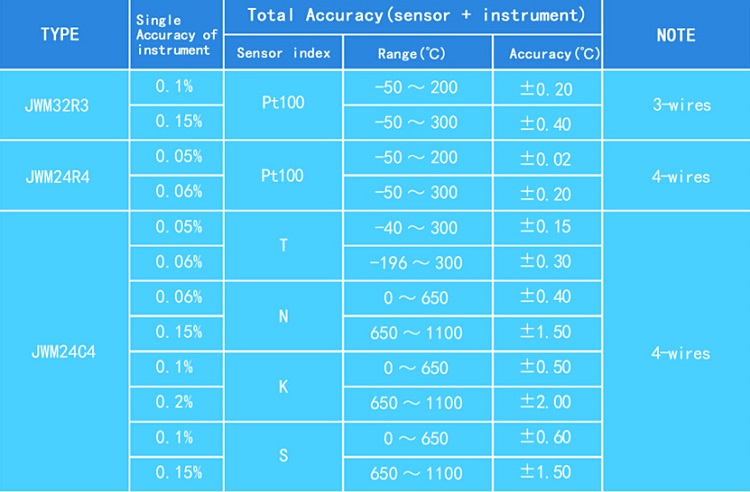

Specification:

JWM32Z3:32 channels, resistor sensor,3-wires input

JWM32Z4:24 channels, resistor sensor,4-wires input

JWM32Z4:24 channels, thermocouple sensor,4-wires input

Characteristics:

Function that instrument corrects temperature drift error of itself

Strong ability of anti-interface

Function that linearity coefficient input to correct many kinds of error, such as error of sensor and error of instrument, so as to achieve super high accuracy

Maximum number of channels:32 or 24

Individual alarm of temperature overrun and sample fault for each channel

Power Supply: 220VAC

Ambient Temperature:0-60℃

Application:

Suitable for most temperature measurement occasion

Suitable for precise measurement, such as verification of temperature field of sterilizer, verification of temperature field of verification furnace, furnace temperature detection of heat treatment

Suitable for verification of temperature of multi-different-points

Suitable for surface measurement (recommend). Matched with super slender thermocouple, JWM24R4 can overcome the effect of heat-conducting perfectly and achieve fast and precise measurement.

Factory settings specified channels can be attachable either to TC or to RTD so as to achieve high efficiency using
