Product Specification

    The pre-calibrated module for combustible gas FSM-19T-02 is a module in which Figaro's semiconductor sensor TGS2619 is installed and features good durability as well as high stability. It is able to provide USART output (the module is equipped with a memory in which the factory pre-calibrated data are stored ) proportional to the concentration detected. Meanwhile, the module will detect whether there is a sensor disconnection or short fault. The module can be operated over a wide temperature range.

    In addition, the module has neglectable cross sensitivities to organic gases, and a better tolerance against silicone compounds, for which it is more suitable to adverse environment.

Features:

* USART digital outputs proportional to gas concentration

* Maintenance free

* Small volume

* RoHS Compliant

Applications:

* Leakage detection for combustible gases

* Combustible gases leaking detector

* Industrial detector

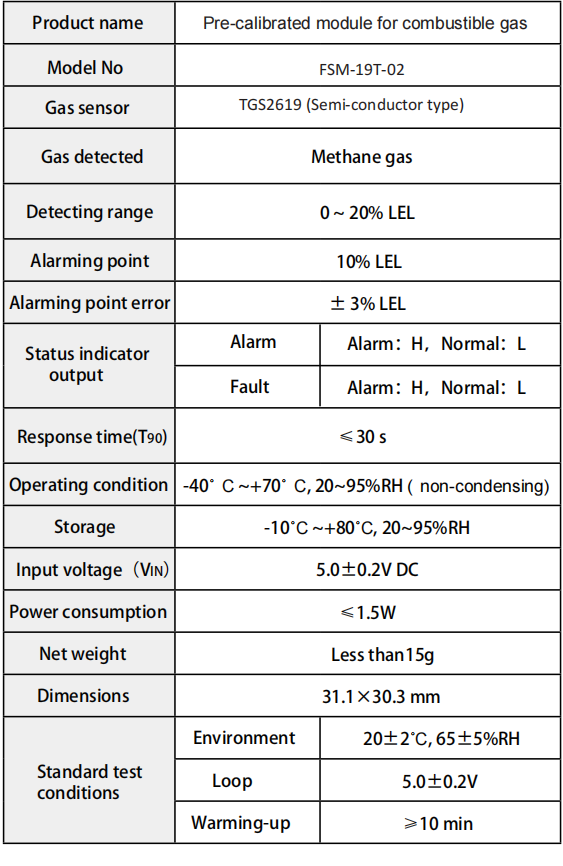

Specifications:

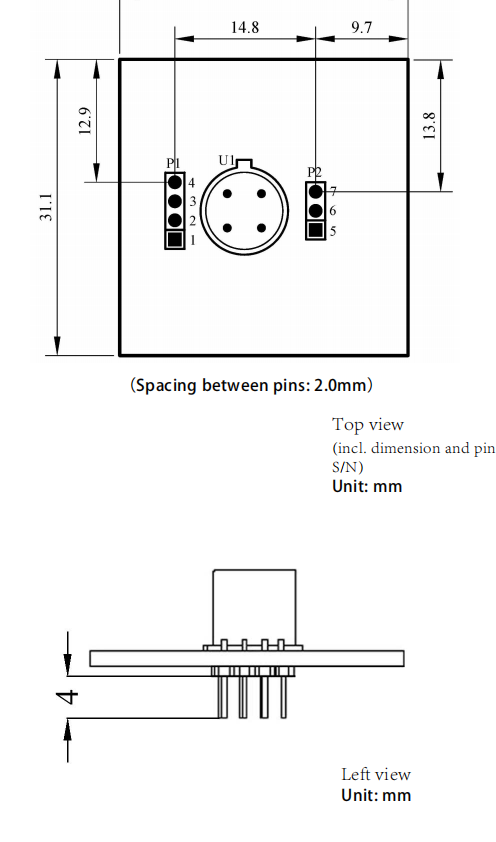

Dimensions:
