Product Specification

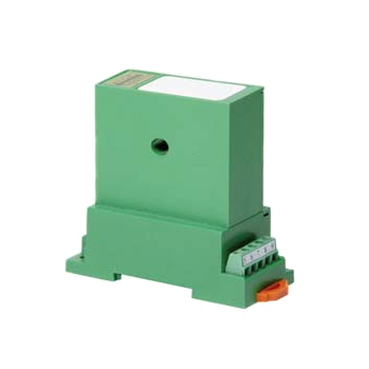

CR6320 Power Factor Transducers are designed to sense the Phase Angle difference between AC Current and Voltage signals.

CR6320 Power Factor Transducer Features
? DIN Rail or Panel Mount
? Up to 600Vac Input Voltage
? Up to 25 AAC Input Current
? Extend the ranges wih External CT's and PT's
? Measure -90 to +90 Phase Difference
? 4-20 mAdc Output
? Connection diagram printed on case

CR6320 Power Factor Transducer Specifications
? Insulation Voltage: 2500 VDC
? Output Load: 0-300 Ω
? Frequency Range: 50Hz-400Hz
? Basic Accuracy: 0.5%
? Power Source: 12 to 24 VDC
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Thermal Drift: 500 PPM/°C
? Operating Temperature: 0°C to +60°C

CR6320 Power Factor Transducer Applications
? Motor Loading
? Correct Power Factor
? Measure Timing

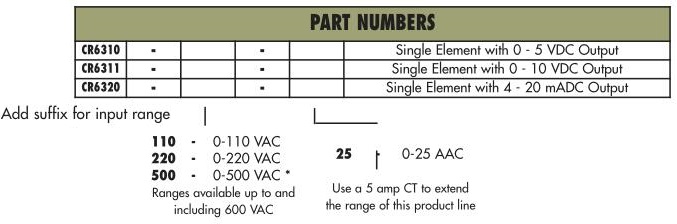

CR6320 Power Factor Transducer PART NUMBERS
