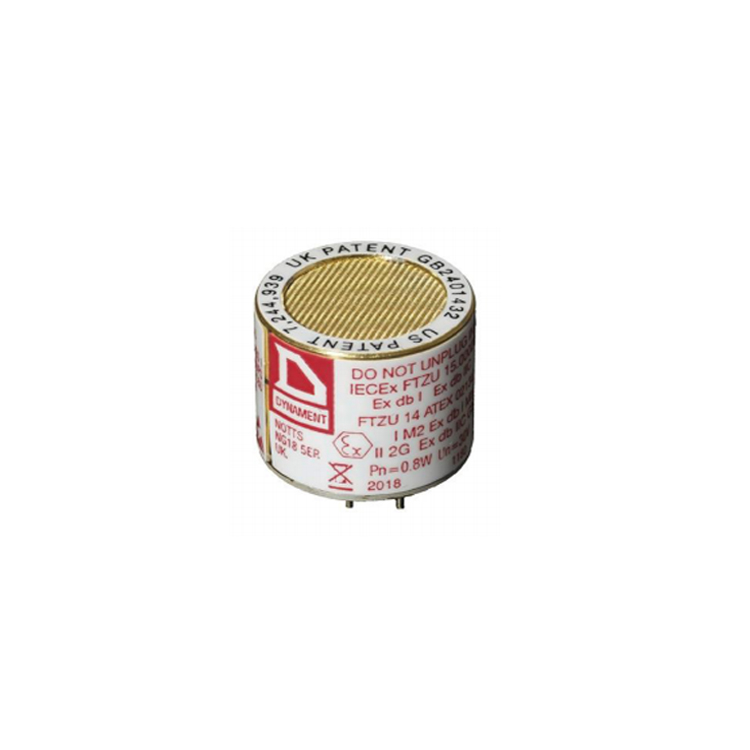

Platinum Series infrared Carbon Dioxide Sensor CO2 ppm - CO2
Available in 4 power variants, 140mA, 80mA ,15mA, 8mA
Industrial Ex d IIC Certified and Mining M1 Certified available for all variants
SIL1 certification available for most variants
- Model Number: CO2
- Quantity:
- - +
Mouse over image to zoom

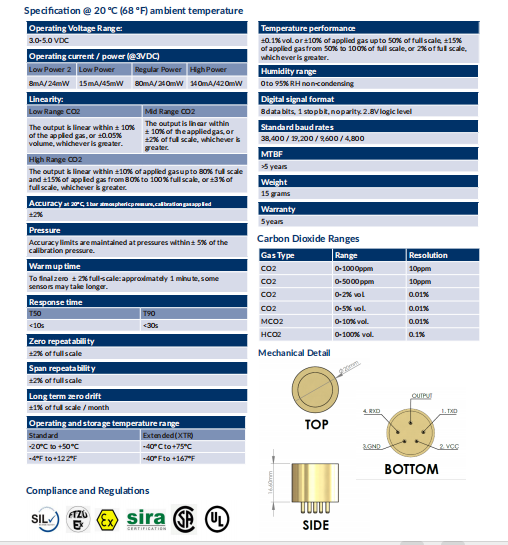

Product Specification
For detection and measurement of carbon dioxide in ppm and % volume ranges
The Platinum series sensors contain all the necessary optics, electronics and firmware to provide a linearized,
temperature-compensated output. Within the Platinum series are low-power options and dual-gas, high resolution
methane / carbon dioxide sensor that provides the capability to simultaneously monitor methane and carbon
dioxide in a single sensor package, consuming the power of a single infrared sensor.
The sensors are available in Industrial Ex d IIC Certified, Mining M1 Certified, UL Approved, and Non-Certified
versions. Low power and EN50271 / SIL1 certified software versions are also available in most combinations.
Key Features
Platinum Series infrared Carbon Dioxide Sensor CO2 Key Features
Available in 4 power variants, 140mA, 80mA ,15mA, 8mA
Industrial Ex d IIC Certified and Mining M1 Certified available for all variants
SIL1 certification available for most variants
All sensors carry a 5 year warranty
Measures carbon dioxide from 0 to 10,000ppm with a resolution of 10ppm
Measures carbon dioxide from 0 to 100% vol.. with a resolution as low as 0.01%
Offers reduced response times when compared with earlier versions
Enhanced EMC protection
Choice of output format digital output (floating point and binary), direct pellistor replacement or industry standard 0.4 to 2 volts
Manual calibration option can be performed without digital commands
User configurable using USB powered Premier Configuration Unit
Output can be scaled in % volume or % full scale
Internal Flash memory allowing sensor firmware updates via configuration unit
