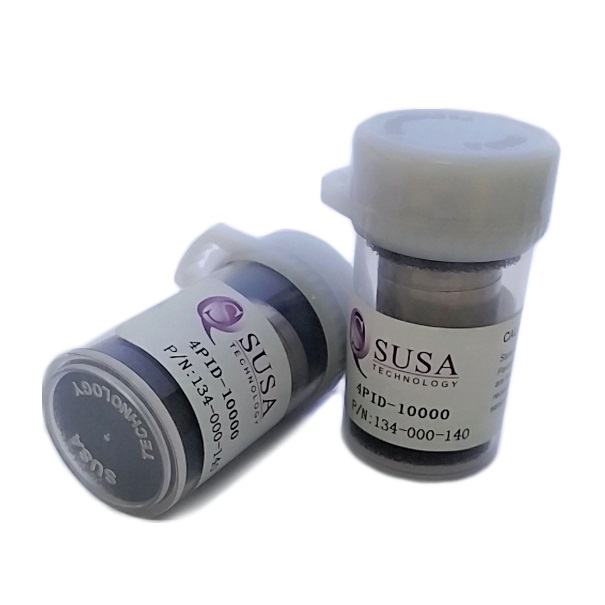

Photoionization Sensor (PID sensor) TVOC Detection - 4PID-10000

? Working principle: PID
? Measurement range: 0~10000ppm
? Resolution: 2ppm
? Sensitivity: > 0.15mV/ppm
? Response Time(T90): ≤3second
? Operating Temperature Range: -40~50°C
? Operating Humidity: 0~99% ( No condensing)

Model Number: 4PID-10000
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Photoionization Sensor (PID sensor) TVOC Detection

4PID-10000 Photoionization Sensor (PID sensor) Basic Characteristics
? Working principle: PID
? Measurement range: 0~10000ppm
? Resolution: 2ppm
? Accuracy: <±2% (Calibration Point)
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)
? Operating Pressure Range: 800~1200mbar

4PID-10000 Photoionization Sensor (PID sensor) Electrical Characteristics
? Working Voltage: 3.2~5V
? Zero Voltage: 100±50mV
? Output: 1.8~3V
? Safe Approval: Ex is Pending

4PID-10000 Photoionization Sensor (PID sensor) Lifetime
? Recommending Storage Temperature: 0~20°C
? Operating Life: minimum 5 years ( not include UV lamp and detector)
? UV lamp Life: minimum 10000 hours
? Warranty: 12 months

4PID Photoionization Sensor Product & Performance Classification(10.6eV)-4R:

Range	20ppm	100ppm	300ppm	1000ppm	2000ppm	10000ppm
Part Number	134-000-020	134-000-120	134-000-320	134-000-130	134-000-230	134-000-140
Resolution	5ppb	25ppb	75ppb	250ppb	500ppb	2ppm
Sensitivity	>75mV/ppm	> 15mV/ppm	> 5mV/ppm	> 1.5mV/ppm	> 0.3mV/ppm	> 0.15mV/ppm
Response Time(T90)	≤5second	≤5second	≤5second	≤3second	≤3second	≤3second
