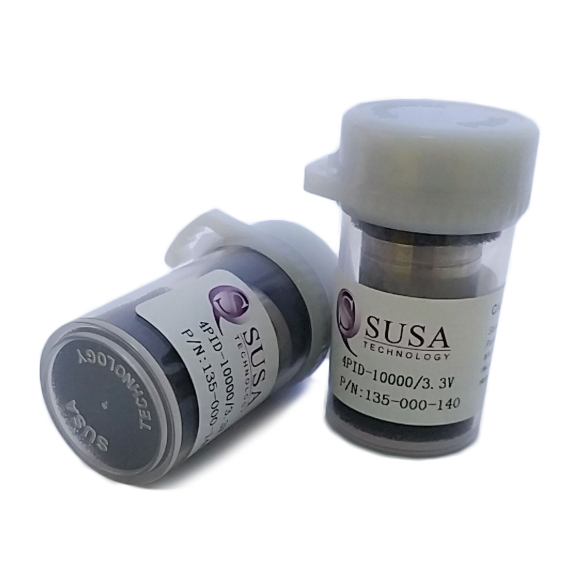

Photoionization Sensor (PID Sensor) TVOC Detection - 4PID-10000-3.3V

? Working principle: PID
? Measurement range: 0~10000ppm
? Resolution: 2ppm
? Sensitivity: > 0.15mV/ppm
? Response Time(T90): ≤ 3second
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)

Model Number: 4PID-10000-3.3V
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Photoionization Sensor (PID Sensor) TVOC Detection

4PID-10000-3.3V Photoionization Sensor (PID Sensor) Basic Characteristics
? Working principle: PID
? Measurement range: 0~10000ppm
? Resolution: 2ppm
? Accuracy: <±2% (Calibration Point)
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)
? Operating Pressure Range: 800~1200mbar

4PID-10000-3.3V Photoionization Sensor (PID Sensor) Electrical Characteristics
? Working Voltage: 3.2~3.4V
? Zero Voltage: 60±20mV
? Output: 1.5~2.5V
? Safe Approval: Ex is Pending

4PID-10000-3.3V Photoionization Sensor (PID Sensor) Lifetime
? Recommending Storage Temperature: 0~20°C
? Operating Life: minimum 36 months ( not include UV lamp and detector)
? UV lamp Life: 24 months
? Warranty: 12 months

4PID-3.3V Photoionization Sensor Product & Performance Classification (10.6eV)-3.3V:

Range	20ppm	100ppm	300ppm	1000ppm	2000ppm	10000ppm
Part Number	135-000-020	135-000-120	135-000-320	135-000-130	135-000-230	135-000-140
Resolution	5ppb	25ppb	75ppb	250ppb	500ppb	2ppm
Sensitivity	> 75mV/ppm	> 15mV/ppm	> 5mV/ppm	> 1.5mV/ppm	> 0.3mV/ppm	> 0.15mV/ppm
Response Time(T90)	≤ 5second	≤ 5second	≤ 5second	≤ 3second	≤ 3second	≤ 3second
