Product Specification

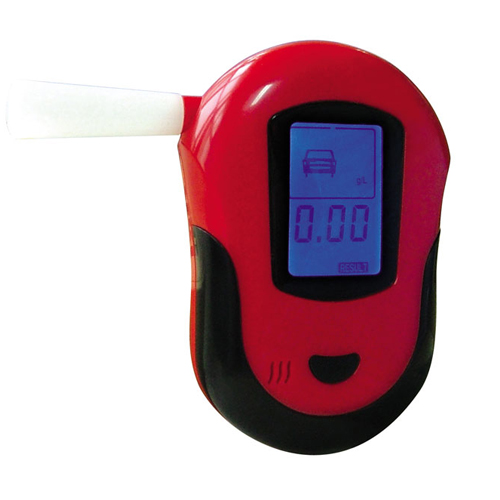

AT6100 Breath Alcohol Tester General Introduction
AT6100 breath alcohol tester is kind of tester designed to measure concentration result of the breathed alcohol in the human body. This device adopts advanced flat surfaced alcohol sensor which has excellent sensitivity and reproducibility, fashional and portable design make it more convenient for personal use. When the alcohol content exceeds the preset limited level, this device would send an audio and video warning to remind your safety.

AT6100 Breath Alcohol Tester Main Feature:
? Advanced flat surfaced alcohol sensor
? Quick response
? SMD assembling, stable performance
? Smart MCU control
? Direct testing process LCD indication
? Digital LCD display with light blue backup
? Audio warning beyond pre-set limit
? Sensor fault self checking
? Battery saved design, low voltage indication

AT6100 Breath Alcohol Tester Technical Data
? Sensor type: Flat surfaced alcohol sensor
? Detection Range: 0.00 ~ 0.20%BAC; 0.00 ~ 2.00g/L; 0.00 ~ 2.00‰BAC; 0.00 ~ 1.00 mg/L; 0.00 ~ 200mg/100ml
? Alarming Level: 0.05%BAC; 0.50g/L; 0.50 ‰BAC; 0.25mg/L; 50mg/100mL
? Accuracy: ±0.02%BAC at 0.05%BAC
? Working Voltage: DC4.5V (3 x AAA) Batteries;
? Working Current: ≤120mA
? Working Environment:
  Temperature: 0℃～50℃
  Relative Humidity: ≤95% No Dews
? Display: 3 digits LCD display with light blue backup
? Dimension: 100 x 70 x 28mm (L x W x H), ≤65 g Battery excluded
? Battery expectancy time: ≥200 Times
