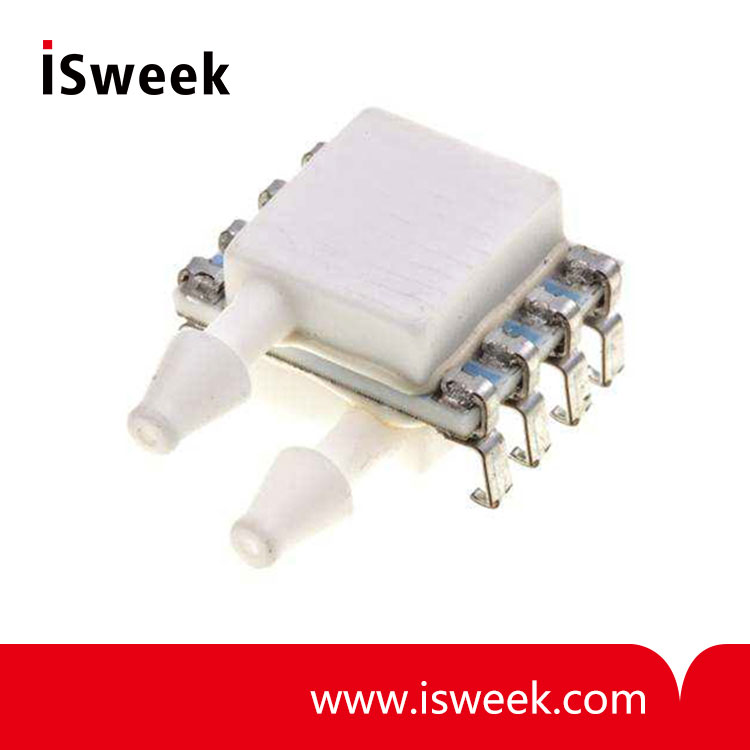

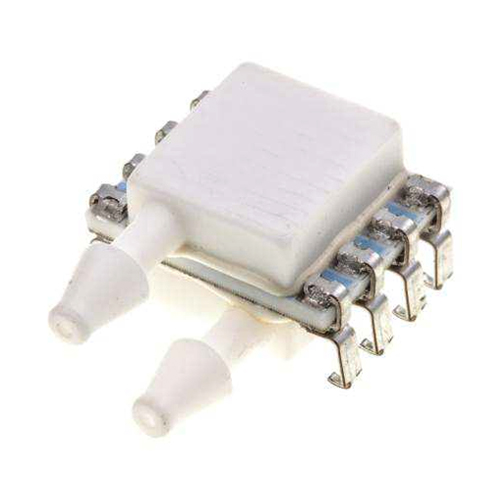

PCB Mounted Digital Output Pressure Sensor - MS4515DO

? Pressure Ranges from 2 to 30 inches H2O
? Temperature Compensated
? 3.3 or 5.0 Vdc Supply Voltage
? Low Power Option Available (standby < 1uA)
? Inches H2O Pressure Ranges
? Pressure Accuracy: ±-0.25%Span
? PCB Mountable
? Digital Output

Model Number: MS4515DO
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MS4515DO Digital Output Pressure Sensor Specification
? PCB Mounted Digital Output Transducer
? Combination Temperature and Pressure
? Pressure Ranges from 2 to 30 inches H2O
? I2C or SPI Protocol
? Differential & Gage
? Temperature Compensated
? 3.3 or 5.0 Vdc Supply Voltage
? Low Power Option Available (standby < 1uA)

The MS4515DO is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers.

The MS4515DO is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0% over the compensated range. The sensor operates from single supply of either 3.3 or 5.0Vdc and requires a single external component for proper operation.

The rugged ceramic transducer is available in side port, top port, and manifold mount and can measure absolute or differential pressure from 2 to 30 inches H 2 O. The 1/8” barbed pressure ports mate securely with 3/32” ID tubing.

MS4515DO Digital Output Pressure Sensor Features
? Inches H2O Pressure Ranges
? PCB Mountable
? Digital Output
? Barbed Pressure Ports

MS4515DO Digital Output Pressure Sensor Applications
? Blocked Filter Detection
? Altitude and Airspeed Measurements
? Medical Instruments
? Fire Suppression System
? Panel Meter
? Air Movement/Environmental Controls
? Pneumatic Controls

MS4515DO Digital Output Pressure Sensor Absolute Maximum Rating

Parameter	Conditions	Min	Max	Unit	Notes
Supply Voltage	T_A = 25 °C	2.7	5.5	V
Output Current	T_A = 25°C		3	mA
Storage Temperature		-40	+125	°C
Humidity	T_A = 25°C		95	%RH	Non Condensing
Overpressure	T_A = 25 °C, both Ports	Not to Exceed 300		psi
Burst Pressure	T_A = 25 °C, Port 1			psi	See Table 1
ESD	HBM	-4	+4	kV	EN 61000-4-2
Solder Temperature	250°C, 5 sec max.

MS4515DO Digital Output Pressure Sensor Environmental Specification

Parameter	Conditions
Mechanical Shock	Mil Spec 202F, Method 213B, Condition C, 3 Drops
Mechanical Vibration	Mil Spec 202F, Method 214A, Condition 1E, 1Hr Each Axis
Thermal Shock	100 Cycles over Storage Temperature, 30 minute dwell
Life	1 Million FS Cycles
MTTF	>10Yrs, 70 oC, 1.188 Million Pressure Cycles, 120%FS Pressure

MS4515DO Digital Output Pressure Sensor Performance Specification
Supply Voltage: 5.0V or 3.3 Vdc
Reference Temperature: 25°C (unless otherwise specified)

PARAMETERS	MIN	TYP	MAX	UNITS
Pressure Accuracy	-0.25		0.25	%Span
Total Error Band (TEB)	-1.0		1.0	%Span
Total Error Band (TEB) 4inH20 and Below	-2.0		2.0	%Span
Temperature Accuracy		1.5		oC
Supply Current		3		mA
Compensated Temperature	0		+60	oC
Operating Temperature	-10		+85	oC
Output Pressure Resolution			14	bits
Output Temperature Resolution	8		11	bits
Update Time		0.5		mS
Start Time to Data Ready			8.4	mS
Weight		3		grams
Media	Non-Corrosive Dry Gases Compatible with Ceramic, Silicon, Borosilicate Glass, RTV, Gold, Aluminum and Epoxy. See "Wetted Material by Port Designation" chart below.
