Oxygen Sensor - S+4OX
Resilient to challenging environments, guaranteed life performance, fast response
- Model Number: S+4OX
- Data Sheet:
- Quantity:
- - +
Product Specification
Introduction：
The S+4OX is a market leading industrial safety oxygen sensor, ideal for fixed and portable gas detectors.
Key Features：
Resilient to challenging environments, guaranteed life performance, fast response
Performance Characteristics：
|
Output signal |
0.10 ± 0.03 mA |
|
Zero Current (Offset) |
< 0.6% vol. O2 (typically <0.3% vol. O2) |
|
T90 Response Time |
< 10 seconds (typically <5 seconds) |
|
Measurement Range |
0 - 25% Oxygen |
|
Maximum Overload |
30% Oxygen |
|
Linearity |
Linear |
|
Recommended Load Resistor |
100 ohms |
Environmental Details：
|
Temperature Range Continuous |
-30℃ to +50℃ |
|
Pressure Range |
800 to 1200 mbar |
|
Operating Humidity Range |
5% to 95% RH |
Lifetime Details：
|
Long Term Output Drift |
< 5% per annum |
|
Recommended Storage Temp |
0℃ to 20℃ |
|
Expected Operating Life |
> 24 months in air |
|
Standard Warranty |
24 months from date of dispatch |

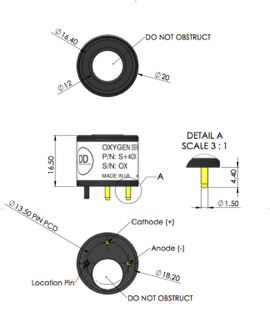

Product Dimensions
All dimensions in mm
All tolerances ±0.15 mm
