Oxygen Sensor Model - PSR-11-915-4

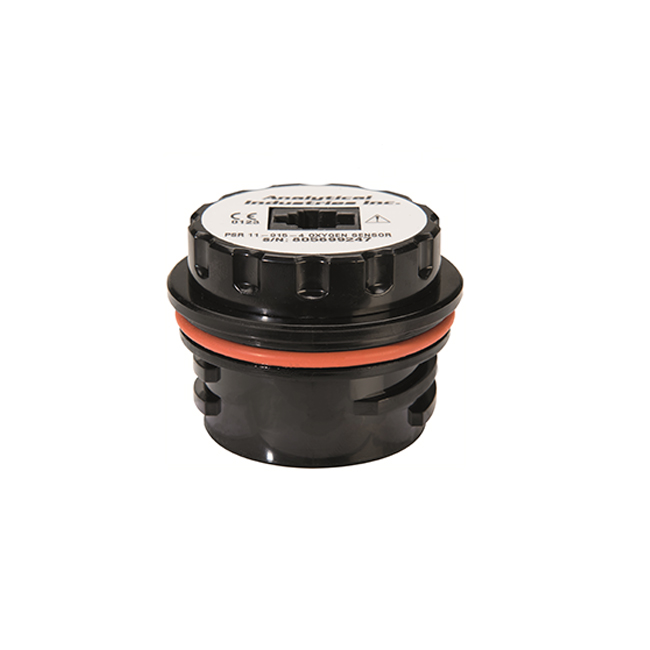

Oxygen Sensor Model

Model Number: PSR-11-915-4
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Oxygen Sensor Model PSR-11-915-4 application:

Advanced galvanic type % oxygen sensors with excellent stability and accuracy under stringent applications.

All % oxygen sensors are subjected to the most extensive stability test, output in air, 30” of water column pressure test and stability at 100% oxygen.

The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”

Oxygen Sensor Model PSR-11-915-4 Specification：

Measuring Range	0-100% O2
Signal Output	8-13 mV
Accuracy Full Scale	±1%
Response Time 90%	9 Seconds
Accuracy FS Over Operating Temperature	±5%
Drift % Signal Month	< 1%
Linearity	+ 1%
Temperature Coefficient	Compensated
Operating Temperature	0 to 45°C
Operating Pressure	Constant 5-30 PSIG
Flow Rate	.1-10 LPM
Expected Life	60 Months
Storage	0 to 40°C
Warranty	18months
Electrical Connections	Modular Jack 6P4C
Packaging	Polyetylene bag in 3” x 3” x 1.5” paper box
Recommended Storage	< 6 months

(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.

(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.

(3) Once the signal output stabilizes following a step change in temperature.

(4) Recommended 0-40° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.

(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer’s negligence, misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.
