MEASUREMENT

Technology

Electrochemical

Measurement Range

0-25% vol. O₂

Maximum Overload

30% vol. O₂

Output Signal*

0.41 ± 0.05 mA in Air

Response Time (T95)*

<20 Seconds

Linearity

Can be considered linear in many cases.

See Operating Principles (OP-02) for further details.

ELECTRICAL

Maximum Load Resistor

100 ?

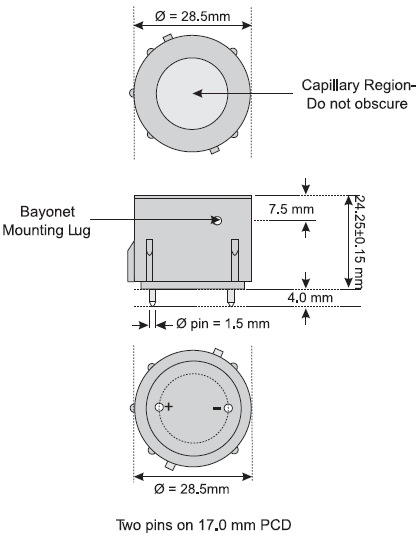

MECHANICAL

Weight

44 g

Orientation Sensitivity

None

ENVIRONMENTAL

Operating Temperature Range

-20°C to +45°C

Recommended Storage Temp

0°C to 20°C

Temperature Coefficient

0.2% signal/°C

Operating Pressure Range

Atmospheric ± 10%

Pressure Coefficient

<0.02% signal/mbar

Operating Humidity Range

0 to 99%rH non-condensing

LIFETIME

Long Term Output Drift*

<5% signal / year

Expected Operating Life

2 years in air

Storage Life

6 months in original packaging
