Product Specification

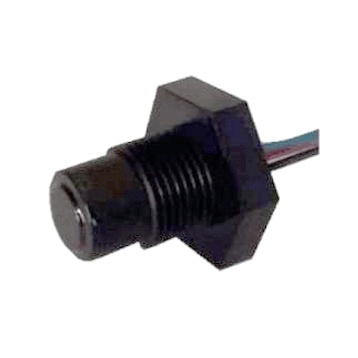

PSC200D3SH Proximity Sensors Description

Our OptoProx Series is designed for detection ranges of typically 10mm and can detect any material except from black surfaces. With its very small size, robust structure and non-sensitivity, it is perfect for  proximity sensing and switching applications in Automation Equipment, Machinery and Material Handling & Process Control.

The OptoProx Range is the ideal product choice as they are:

? Small & Compact
? Reliable Solid State Technology
? Detects all Materials
? Not Sensitive to Magnetic Fields
? Opertates to 1kHz
? Temperature Range from -40 to +125°C
? Low Power Consumption

PSC200D3SH Proximity Sensors Applications

The OptoProx Optical Proximity Sensor is ideal for use in applications such as:

? Machinery
? Vending Machines
? Production and Packaging Lines (counting items)
? Speed Sensing
? Suitable Alternative to Inductive Proximity Sensors in many applications
? Automation Equipment
? Material Handling and Process Control
? Detects Bulk Materials: Wood Pellets, Grain, Rice

PSC200D3SH Proximity Sensors ELECTRICAL SPECIFICATIONS

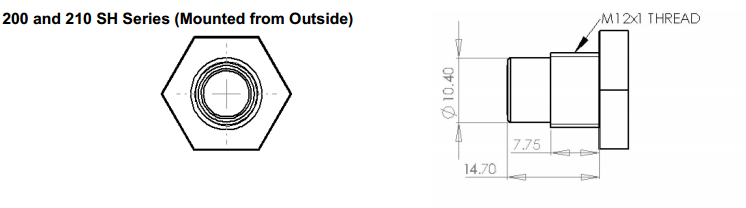

PSC200D3SH Optoprox Series Proximity Sensors Products Demensions(all demensions in mm)

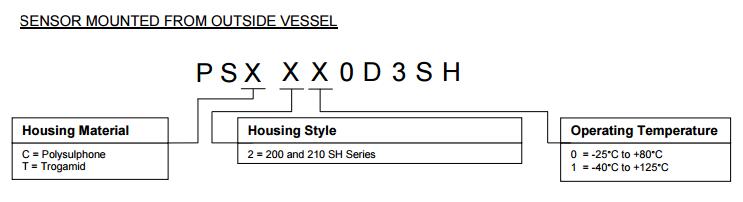

Optoprox Series Proximity Sensors PART NUMBERING SYSTEM
