Product Specification

Description:

    OP550, OP552, OP555 and OP750 series consists of a NPN silicon phototransistor molded in an epoxy package with a wide receiving angle that provides relatively even reception over a large area. The OP750 series have additional circuitry to enhance the operation of the device for stray light levels.

    The OP560 series consists of a NPN silicon photodarlington transistor molded in an epoxy package with a wide receiving angle that provides relatively even reception over a large area.

    The side-looking package design allows easy PCBoard mounting of slotted optical switches or optical interrupt detectors.

    The OP550, OP560 and OP750 devices have an external lens in a clear epoxy package.

    The OP552 device has an integral lens in an opaque plastic package that is optically transparent to infrared light but opaque to visible wavelengths. This feature allows the device to be used under high ambient light conditions – or anywhere external light sources could interfere with the intended sensing application (visible light immunity).

    The OP555 device has an internal lens in a blue-tinted package. The lensing effect of this package allows an acceptance halfangle of 28° when measured from the optical axis to the half-power point.

    These devices are 100% production tested using infrared light for close correlation with OPTEK’s GaAs and GaAIAs emitters.

    All of these sensors are mechanically and spectrally matched to the OP140, OP142, OP145, OP240 and OP245 series of infrared emitting diodes.

Features:

? Wide receiving angle

? Four sensitivity ranges

? Side-looking package

? Ideal for space-limited applications

? Ideal for PCBoard mounting

? Choice of clear, opaque or blue-tinted package

Applications:

? Applications requiring wide receiving angle

? Applications requiring PCBoard mounting

? Space-limited applications

? Optical switches

? Optical interrupt detectors

? Optical encoders

? Non-contact position sensing

? Machine automation

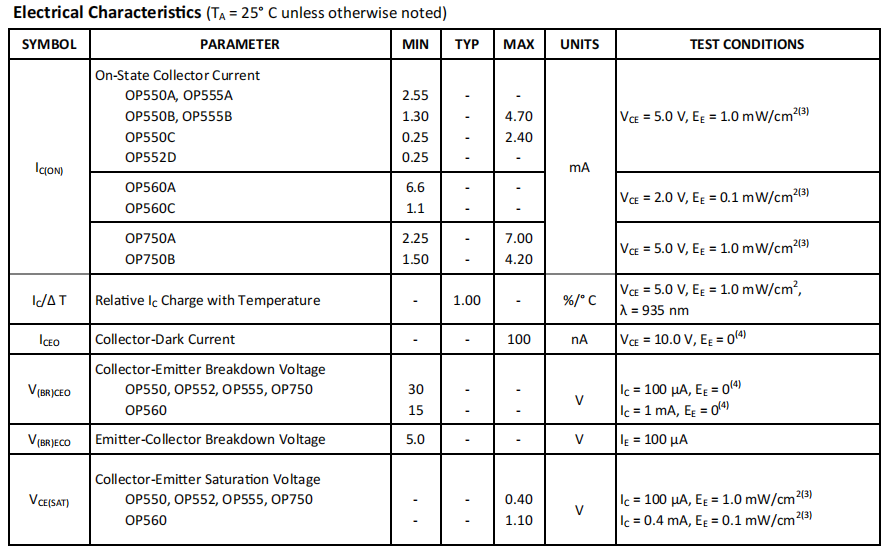

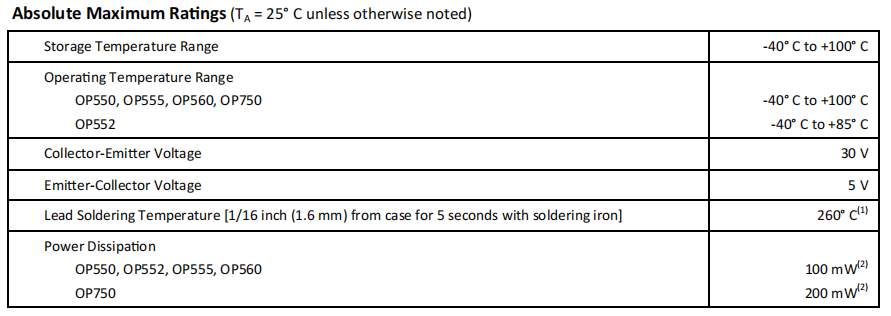

Electrical Specifications:
