Multi-function Instrument - MFM300

? Certifications: WEEE, RoHS, CE, NIST
? Temperature Range: -58°F to 302°F (-5°C to 150°C)
? Temperature Accuracy: ±0.3°F (±0.2°C) or ±0.5% of Reading
? Ambient Temperature Range: 32°F to 122°F (0°C to 50°C)
? Cable Material: Polyurethane
? Power Supply: AA Battery
? Battery Life: 100 Hours Minimum

Model Number: MFM300
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

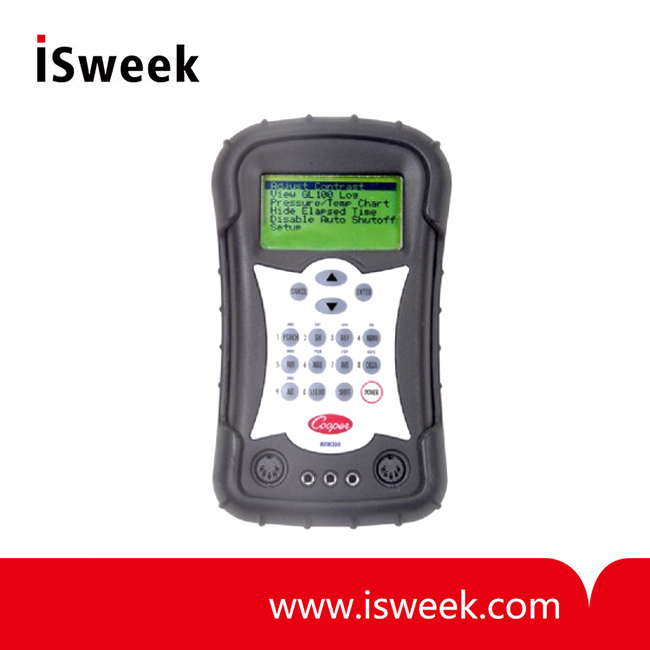

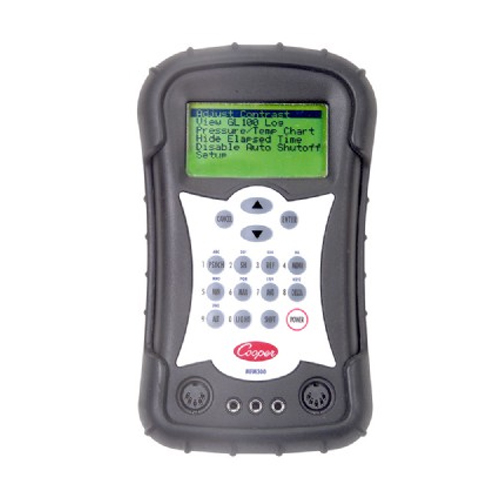

Multi-function Instrument
Model: MFM300

Lighten your load and increase your capabilities by using the MFM300. It's your choice …use the following instruments and tools: Digital Thermometers, Anemometers, Sling Pyrchrometers, Data Loggers, Gauge Sets, P-T Charts and Psychrometric Charts or just use one,.... the MFM300. The MFM300 has te ability to measure, calculate and display the following: Temperature - 3 zones, Delta T, Min, Max and Average; Pressure; Superheat and Sub-cooling; Psychrometrics; Air Flow; Data Logging and is Upgradeable. The MFM300 is designed as a modular, upgradeable and expandable system allowing the user to add as needed; probes; features and capabilities. Eliminates Cost!

MFM300 Multi-function Instrument Product Specifications

Case	Hard Carrying Case Strap
Warranty	2 Years instrument, 1 Year probe (extended warrany option for instrument)
Certifications	WEEE, RoHS, CE, NIST
Probe	Model 1075 Puncture Probe, Model 4011 Surface Probe with 8" Velcro Strap
Temperature Range	-58°F to 302°F (-5°C to 150°C)
Temperature Accuracy	±0.3°F (±0.2°C) or ±0.5% of Reading (whichever is greater)
Ambient Temperature Range	32°F to 122°F (0°C to 50°C)
Resolution	Temperature: 0.1° Relative Humidity: 1% Pressure: 1 psi (1 kPa) Airflow: 1fpm (0.001m/s)
LCD Height	Character Height: 0.15 inch (3.8mm) 8 lines w/ 20 characters per line (up to 160 characters)
Housing Material	Case: High-impact plastic Protective Boot: SBS
Sensor Type	Temperature Relative Humidity Pressure (refrigerant gas) Airflow
Response Time	Display Update Rate: 1/sec.
Shaft Length	1075 probe 4 in. (101mm) 4011 probe:N/A
Shaft Diameter	1075 probe: 0.140 in. (3.5mm) 4011 probe:N/A
Cable Length	1075 probe: 6 ft. (1.8m) Coil cord 4011 probe:12 ft. (3.66m)
Cable Material	Polyurethane
Power Supply	AA Battery
Battery Life	100 Hours Minimum
Weight	One lb. ( not including probes )
Dimensions	Length: 7.75 in. (197 mm) Width: 4 in. (100 mm) Depth: 1.5 in. ( 38mm)
