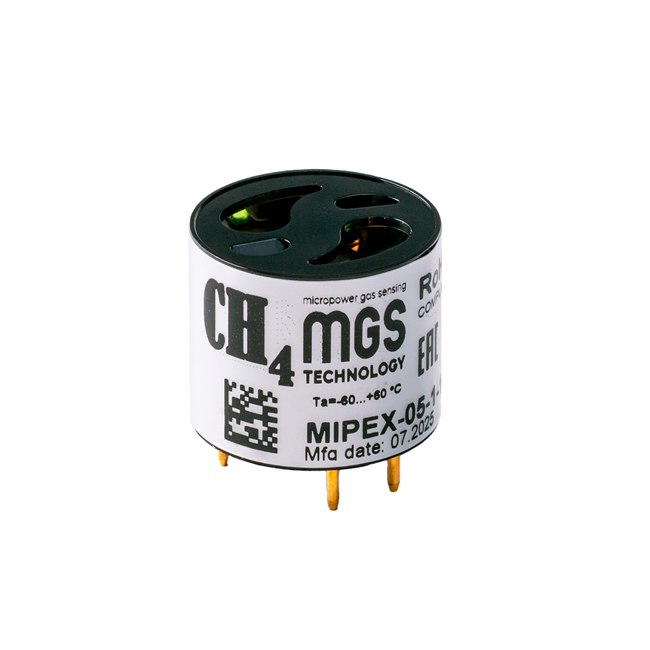

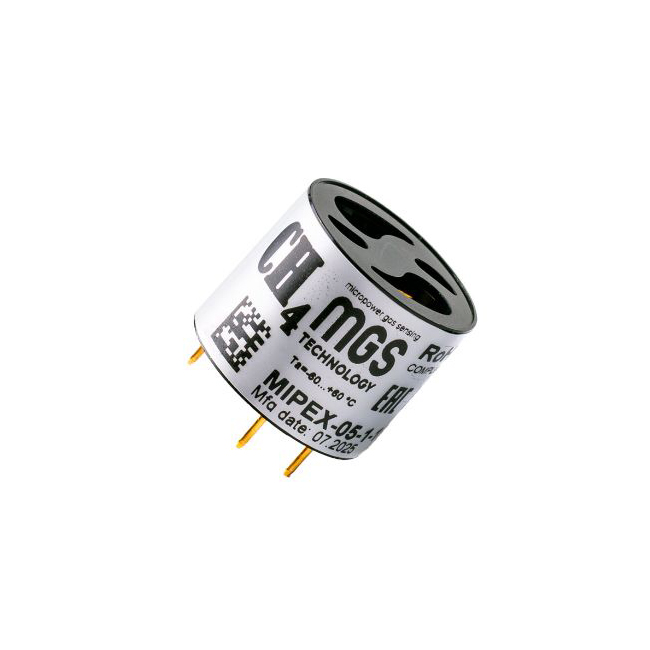

MIPEX Low-power NDIR Optical Gas Sensor CH4 Methane Sensor - MIPEX-05

Power consumption: less than 0.2?mW (average current ?Measurement range: 0–5% vol and 0–100% vol (CH?)
Operating temperature: –40 to +60?°C
Response time (T90): 15?s (without dust filter)

Model Number: MIPEX-05
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MIPEX Low-power NDIR Optical Gas Sensor CH4 Methane Sensor MIPEX-05 Description：

The MIPEX-05 [CH?] sensor combines ultra-low power consumption with robust performance, enabling its use in compact portable and wireless gas detectors designed for methane detection in explosive atmospheres.

MIPEX Low-power NDIR Optical Gas Sensor CH4 Methane Sensor MIPEX-05 ADVANTAGES:

Power consumption: less than 0.2?mW (average current <?60?μA)
?Measurement range: 0–5% vol and 0–100% vol (CH?)
Operating temperature: –40 to +60?°C
Response time (T90): 15?s (without dust filter)

Interface:

Interface: UART digital output

Dimensions:

Size: ?20.1?×?16.6?mm
Housing: Polycarbonate Lexan?
Protection rating: IP20 / IP54 (with dust filter)

MIPEX Low-power NDIR Optical Gas Sensor CH4 Methane Sensor MIPEX-05 Specifications：

Parameter	Value
General specification
Gas sampling method:	Diffusion
Operating principle:	NDIR
Calibration gas	CH?
Relative humidity	up to 98% (without condensation)
Atmospheric pressure, kPa	80…120
Temperature, °C	-40...+60
Warm-up time, sec	≤ 120
Life time	≥ 5
Level IP	without filter 20 with dust filter 54
Housing material	Polycarbonate Lexan?
Overall dimensions, mm	?20.1×16.6 (w/o pins)
Weight, g	7.5
Measurement specification
Measurement range, % vol.	0…5 0…100
Variability (+20…+25 ?C)	± 0.1% vol. or ± 5% of readings (whichever is greater)
Response time t(90)	without dust filter 15 with dust filter attached 25
Electrical specification
Operating supply voltage, VDC	+2.7...+5.0 +3.0…+5.0
Maximum supply voltage, VDC	+5.4
Communication interface	UART
Average current, μA	60
Sensor is designed in compliance with:	IEC 60079-0, IEC 60079-11 EN IEC 60079-0 / EN 60079-11 UL913, CAN/CSA-C22.2 No. 157-92
