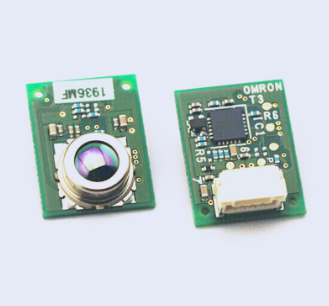

MEMS Thermal Sensors - D6T-44L-06

? Low noise
? Easy connection
? Compact size

Model Number: D6T-44L-06
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

D6T-44L-06 MEMS Thermal Sensors Feature：

MEMS Thermal (IR^*1 sensor) measures the surface temperature of objects without touching them when the thermopile element absorbs the amount of radiant energy from the object.

? Low noise：Achieving the highest level of SNR^*2 in the world^*3

? Easy connection：Converts sensor signal to digital temperature output allowing easy use of microcontroller

? Compact size：Space-saving design, well-suited for embedded applications

*1. IR: Infrared Ray

*2. SNR: Signal-to-Noise Ratio. Compares the level of a signal to the level of background noise

*3. As of December 2017, according to OMRON research

D6T-44L-06 MEMS Thermal Sensors Sensing：

1.Human Detection

D6T series sensors can detect human presence by sensing changes in human body temperature with respect to the surrounding temperature.

Application fields：

? Air conditioners

? lighting systems

? security systems

? nursing care and monitoring equipment

D6T series sensors can detect the slightest temperature changes that can be used in variety of applications including energy-efficient home appliances and security systems. The sensors can also be used in the application fields of HEMS (Home Energy Management System) and BEMS (Building Energy Management System).

2.Object Detection

D6T sensors can detect objects by pinpointing the target object temperature.

Application fields：

? Industrial equipment

? non-contact thermometers

? refrigerators

? microwave ovens

? IH cooking heaters

? data centers

D6T sensors let you measure temperature without the need to physically touch the object. This allows measuring temperature where it was not possible for contact thermal sensors due to space shortage. The sensors can be used in a wide range of applications including FEMS (Factory Energy Management System).

D6T-44L-06 MEMS Thermal Sensors Ratings, Specifications, and Functions：

Ratings
Item		D6T-44L-06
Power supply voltage		4.5 to 5.5 VDC
Storage temperature range		-10 to 60°C
Operating temperature range		0 to 50°C
Storage humidity range		85% max.
Operating humidity range		20% to 85%
Characteristics
Item	Model	D6T-44L-06
View angle *^1**	X direction	44.2°
	Y direction	45.7°
Object temperature output accuracy *^2**	Accuracy 1	±1.5°C max. Measurement conditions: Vcc = 5.0 V (1) Tx = 25°C, Ta = 25°C (2) Tx = 45°C, Ta = 25°C (3) Tx = 45°C, Ta = 45°C
Current consumption		5 mA typical
Functions
Item		D6T-44L-06
Object temperature detection range *^2**		5 to 50°C
Ambient temperature detection range *^2**		5 to 45°C
Output specifications		Digital values that correspond to the object temperature (Tx) and reference temperature (Ta) are output from a serial communications port.
Output form (Object temperature detection)		Binary code (10 times the detected temperature (°C))
Output form (Reference temperature inside the sensor)		Binary code (10 times the detected temperature (°C))
Communications form		I2C compliant
Temperature resolution (NETD) *^3**		0.06°C (Data update cycle 300 msec)
