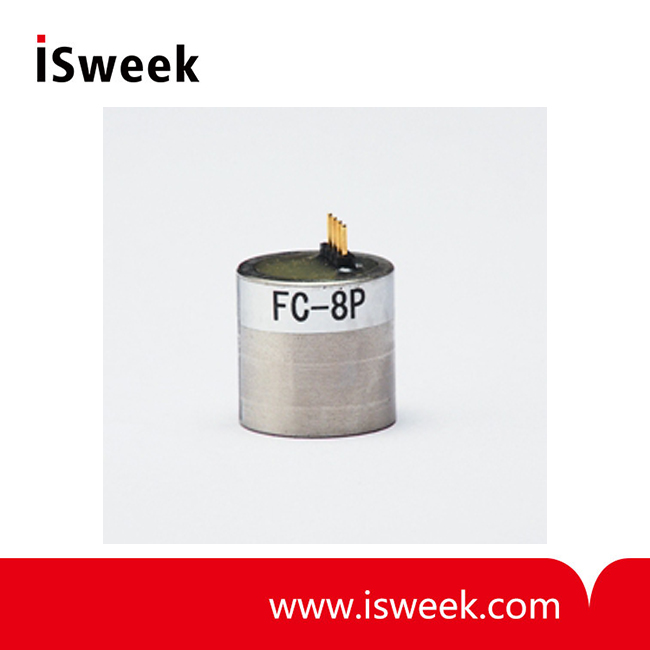

Low-power type Combustible gas sensor - FC-8P
? Liner output up to 100%LEL
? Good sensitivity and reproducibility
? Less temperature/humidity dependence
? Low power consumption
- Quantity:
- - +
Product Specification
Low-power type Combustible gas sensor FC-8P Features:
? Liner output up to 100%LEL
? Good sensitivity and reproducibility
? Less temperature/humidity dependence
? Low power consumption
Low-power type Combustible gas sensor FC-8P Specifications:
|
Model |
FC-8P |
|
Measuring Gas |
Combustible gas (Methane etc.) in the air |
|
Detection Method |
Catalytic Combustion type |
|
Measuring Range |
0-100%LEL |
|
Response time |
Within 20 seconds at 90% response(Iso-butane 33%LEL) |
|
Operating Temperature Range |
-10 - 40℃ |
|
Supply Current |
1.8±0.03V(constant) approx.92mA |
|
Size |
φ20.0 x 20.0mm |
|
Weight |
Approx. 35g |
|
Guarantee |
1 year from invoice date |
|
Used in |
Gas monitors, FM-620E, FM-621E, MD-620E |
