Indoor Air Quality Monitor / Controller - F2000IAQ-VOC

? VOC's measuring range: 1~30ppm
? Display resolution: 0.1ppm
? Power supply: 24VAC/VDC
? Consumption: 2.8 W
? Response Time: <5 minutes for 90% step change
? Output resolution: 10Bit
? Operation temperature: 0~50°C (32~122°F)?
?? Operation humidity?: 0~95%RH, non condensing?

Model Number: F2000IAQ-VOC
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

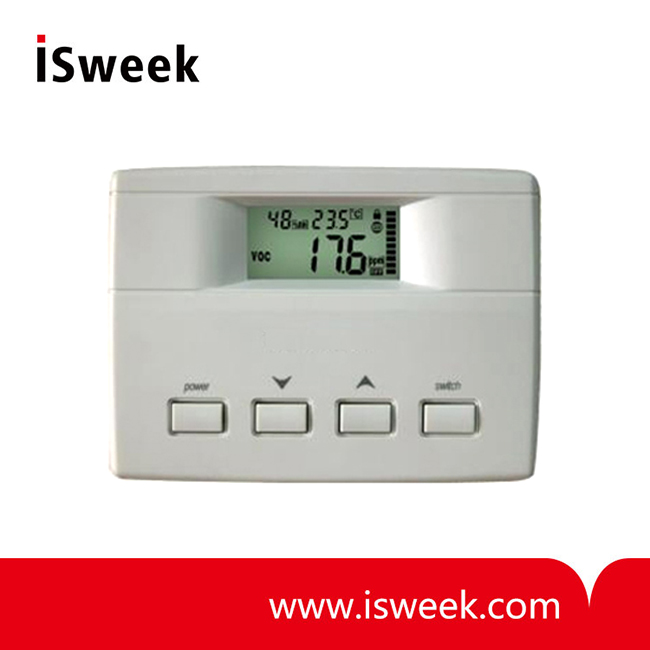

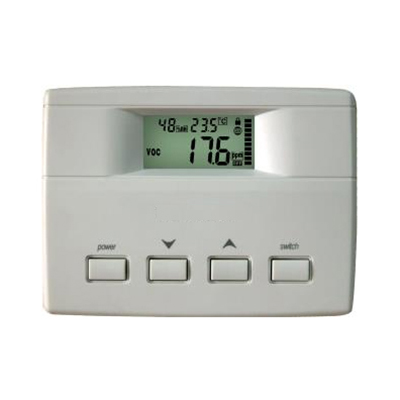

Indoor Air Quality Monitor / Controller
model#: F2000IAQ-VOC
Temperature & Humidity Monitoring

? Real time detecting indoor air quality with LCD display
? High sensitivity for VOCs and other indoor contaminative gases
? 5~7 years long life
? Temperature and humidity detection and compensation
? Provide up to 1 analog output and 2 dry contact outputs
? Optional Modbus RS485 communication interface
? Strong function, high performance, low price

F2000IAQ-VOC Indoor Air Quality Monitor / Controller Description
IAQ is a comprehensive index, including room temperature, humidity, fresh air, and diverse low concentrations air contaminants. Monitoring IAQ is very important to guarantee healthy life and work.

F2000IAQ-VOC is specially designed to detect indoor air quality in offices and home environments. Its internal gas sensor has high sensitivity not only to VOC's such as toluene emitted from wood finishing and construction products but also to other air contaminants which are emitted by cigarette smoke, ammonia and H2S. It's also sensitive to carbon monoxide, alcohol, natural gas and smell from people’s body. So it is more suitable for monitoring IAQ than other sensors which one is only for one kind of gas.

F2000IAQ-VOC also can be used as a controller in ventilation system and AC system.

F2000IAQ-VOC Indoor Air Quality Monitor / Controller Features
? Real time monitor ambiance air quality with a mix gas sensor
? Japanese semiconductor gas sensor with 5~7 years long life
? Monitor temperature and relative humidity
? LCD display air quality as well as temperature and humidity, fan status etc. Makes reading and operating easy and accurate.
? user-friendly setting buttons
? Temperature and humidity compensation makes the IAQ measurement more consistent in different environments
? Modbus RS-485 communication interface optional, 15KV antistatic protection, independent base address setting
? Up to 1x0~10V analog output and 2xrelay dry-contact outputs
? Two alternatives for the analog output : linearized over full range output or PID control output.
? The relays can be selected to control IAQ , temperature or humidity (programmable setting)
? Timer of turning-off function for the ventilator device from 0.5 to 12 hours.
? Low power consumption

F2000IAQ-VOC Indoor Air Quality Monitor / Controller Application
? Ambiance air quality detection and alert
? Ventilation control
? Air quality monitors
? Odor monitors

F2000IAQ-VOC Indoor Air Quality Monitor / Controller Specifications

Gas detected	VOCs ( toluene emitted from wood finishing and construction products); Cigarette smoke (hydrogen, carbon monoxide); ammonia and H2S, alcohol, natural gas and smell by people's body
Sensing element	Semiconductor mix gas sensor
Power supply	24VAC/VDC
Consumption	2.8 W
Response Time	<5 minutes for 90% step change
Warm up time	48 hours (first time), 1 hour (normal operation)
VOC's measuring range	1~30ppm
Display resolution	0.1ppm
Temperature & Humidity Sensor	Temperature	Relative Humidity
Sensing element	NTC	Capacitive sensor
Measuring range	0~50°C	0 - 95%RH
Accuracy	±0.5°C (25°C, 40%-60%RH)	±4.5%RH (25°C, 40%-60%RH)
Display resolution	0.5°C	1%RH
Stability	±0.5°C per year	±1%RH per year
Analog output	0~10VDC linear output or PID control output, programmable selection
Output resolution	10Bit
Relay output	Two dry contact outputs with programmable selection to control VOC, temperature, humidity. Rated switching current 2A(220VAC/30VDC), resistance load
Modbus interface	Modbus RS-485 protocol. 19200bps(default) 15KV antistatic protection, independent base address, 31 max network nodes
Operation temperature	0~50°C (32~122°F)
Operation humidity	0~95%RH, non condensing
Storage conditions	0~50°C (32~122°F)
Net Weight	280g
Dimensions	120mm x 90mm x 24mm
Installment standard	65mm x 65mm or 2" x 4" wire box
Interface connections (Max.)	10 terminals
Wiring standard	Wire section area <1.5mm²
Quality System	ISO 9001
Programming and selection	Via DIP switch and external push-buttons
Outputs (max.)	1~2 dry contact relay outputs, 1X0~10V output
