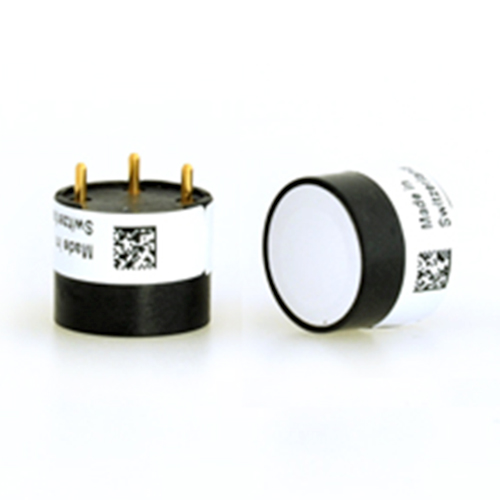

Highly Sensitive Nitrogen Dioxide Gas Sensor (NO2 Sensor) - NO2/M-20

? Nominal Range: 0 - 20 ppm
? Maximum Overload: Nd
? Expected Operation Life: 2 years in air
? Output Signal: -600 ± 150 nA/ppm
? Resolution: 0.1 ppm
? T90 Response Time: < 25 sec
? Repeatability: < 2 % of signal
? Temperature Range: -20°C to 50°C
? Relative Humidity Range: 15 % to 90 % R.H. non-condensing

Model Number: NO2/M-20
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Miniature Gas Sensors
Industry standard for portable gas detectors. Widely-used format for personal safety.

Features
Smallest size

Dimensions
Conforms to 4-Series
Diameter: 20 mm
Height: 16.6 mm
Pin diameter: 1.5 mm

NO2/M-20 Nitrogen Dioxide Sensor (NO2 Sensor) Applications
? Continuous Air Quality Monitoring
? Safety and Environmental Control
? For Portable Gas Detectors

NO2/M-20 Nitrogen Dioxide Sensor (NO2 Sensor) Performance Characteristics
Performance data conditions: 20°C, 50% RH and 1013 mbar

Nominal Range	0 - 20 ppm
Maximum Overload	Nd
Expected Operation Life	2 years in air
Output Signal	-600 ± 150 nA/ppm
Resolution	0.1 ppm
Temperature Range	-20°C to 50°C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	No data
T90 Response Time	< 25 sec
Relative Humidity Range	15 % to 90 % R.H. non-condensing
Typical Baseline Range (pure air, 20°C)	-0.2 ppm to +0.2 ppm
Maximum Zero Shift (+20°C to +40 °C)	0.2 ppm equivalent
Expected Long Term Output Drift	< 2% signal loss/month
Recommended Load Resistor	33 Ohm
Bias Voltage	Not required
Repeatability	< 2 % of signal
Output Linearity	Linear

NO2/M-20 Nitrogen Dioxide Sensor (NO2 Sensor) Physical Characteristics

Weight	~ 5.4 g
Position Sensitivity	None
Storage Life	Six months in container
Recommended Storage Temperature	5°C - 20°C
Warranty Period	12 months from date of dispatch
